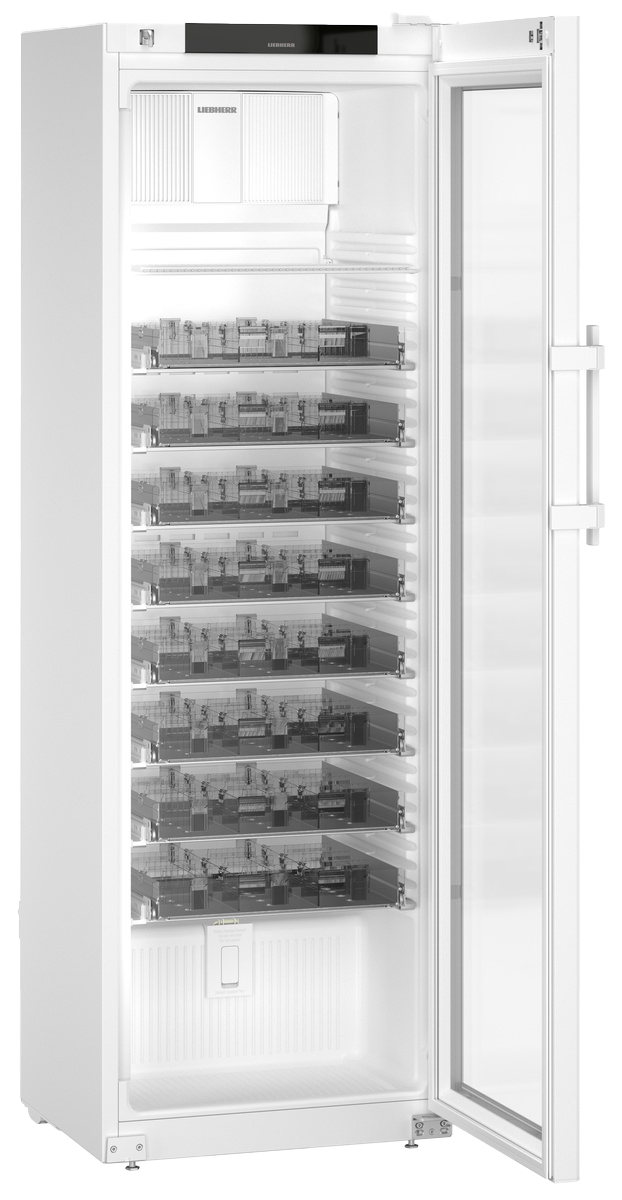

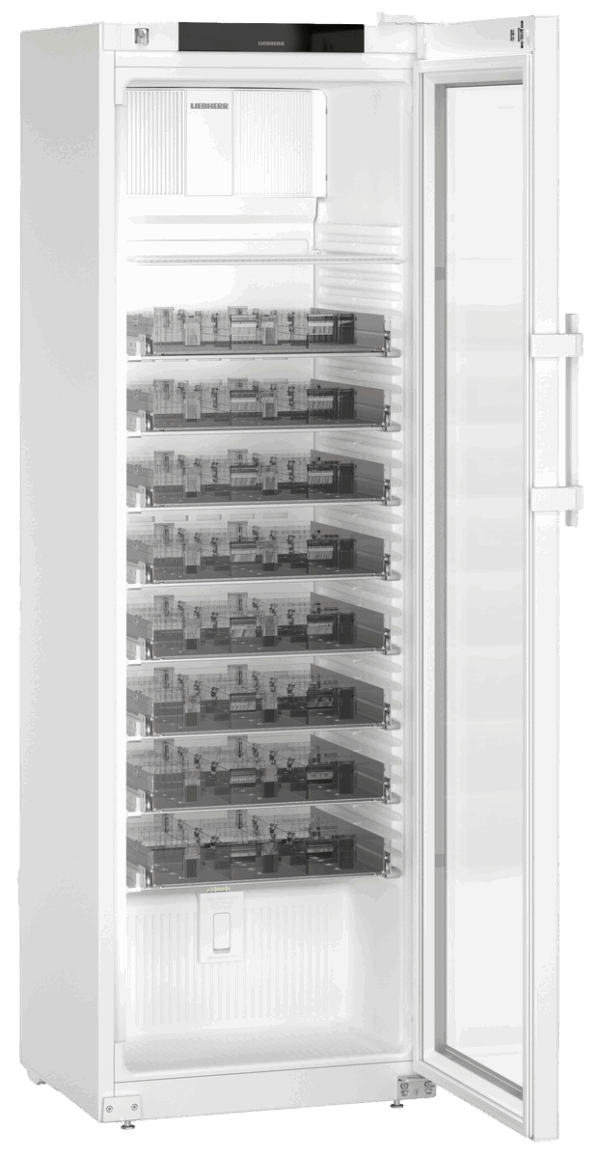

The Liebherr Pharmacy Fridge HMFvh 4011 is a professional, upright pharmacy refrigerator in the Perfection series, designed for the secure storage of pharmaceuticals, vaccines, and temperature-sensitive medications in pharmacies, medical facilities, and clinical settings. Compliant with DIN 13277, this glass-door refrigerator offers a 420-liter gross capacity and a fixed temperature setting of +5°C, maintaining an operating range of +2°C to +8°C with a maximum deviation of ±2°C. Featuring fan-assisted cooling, a 2.4″ touch & swipe color display, vertical LED lighting, and a hygienic polystyrol liner, the HMFvh 4011 ensures precise temperature stability and optimal visibility. With integrated SmartMonitoring, SmartLock, comprehensive safety features, and an antimicrobial handle, it is an ultra-efficient solution for critical pharmaceutical applications, backed by Liebherr’s 3-year warranty.
Key Features
-
DIN 13277 Compliance: Meets stringent requirements for pharmaceutical storage, maintaining a fixed +5°C temperature with a maximum deviation of ±2°C, tested to EN 60068-3 standards at nine interior points, ensuring safe storage of vaccines and medications.
-
Fan-Assisted Cooling: Dynamic cooling system with high-performance fans cools freshly stored items rapidly and maintains uniform temperature distribution, enhancing reliability for sensitive pharmaceuticals.
-
Vertical LED Lighting: Energy-efficient LED light column provides optimal illumination across the interior height, ensuring clear visibility of stored products for quick access and stable internal temperatures; lighting can be switched off if needed.
-
Energy Efficiency: Consumes 389 kWh/year (1.065 kWh/24h) using eco-friendly R600a refrigerant and high-efficiency components, reducing operating costs and environmental impact.
-
Hygienic Design: Seamless, one-piece polystyrol inner liner is robust, odorless, and fully recyclable, with large corner radii for easy cleaning, meeting ISO EN 14644-1 Class 5 cleanroom standards.
-
Advanced Monitoring: 2.4″ touch & swipe color display with integrated data logger, min./max. temperature log, and HACCP-compliant documentation; integrated WiFi/LAN interface for SmartMonitoring, enabling cloud-based temperature monitoring and alarms via email, text, or phone.
-
Safety and Security: Features SmartLock (automatic door locking on alarm), visual/audible alarms for temperature deviations, power failure (12-hour battery backup), and sensor defects, volt-free alarm contact, +2°C SafetyDevice to prevent freezing, antimicrobial handle reducing bacteria by up to 99.99%, and an electronic door lock with optional remote control via PIN code.
-
Flexible Configuration: Reversible door hinges (factory-set to right) without additional parts, 5 adjustable glass shelves (45kg load each), and a Ø10mm feedthrough for external sensors for installation flexibility.
-
User-Friendly Controls: Flush-integrated control panel with a dirt-resistant touch & swipe interface, self-explanatory menu, demo mode for training, and support for 19 languages; hidden service menu for custom configurations like alarm settings and calibration.
-
Low Maintenance: Operates without filters, with automatic defrost and replaceable plug-in door seals for tool-free replacement; self-closing door (<90°) enhances convenience; requires only regular cleaning and calibration; operates quietly at 49 dB(A).
Applications
-
Pharmacies: Stores vaccines and medications with precise temperature control, meeting DIN 13277 and QCPP standards for safe pharmaceutical storage.
-
Medical and Clinical Trials: Preserves clinical samples and medications with uniform temperature stability, ideal for hospitals and research settings.
-
Cleanroom Environments: Certified for ISO Class 4 cleanroom use, supporting applications requiring strict hygiene and low particulate contamination.
-
Healthcare Facilities: Provides secure storage for medical supplies, with monitoring features to meet regulatory standards.
-
Laboratories: Supports storage of temperature-sensitive reagents and compounds, maintaining quality under controlled conditions.
