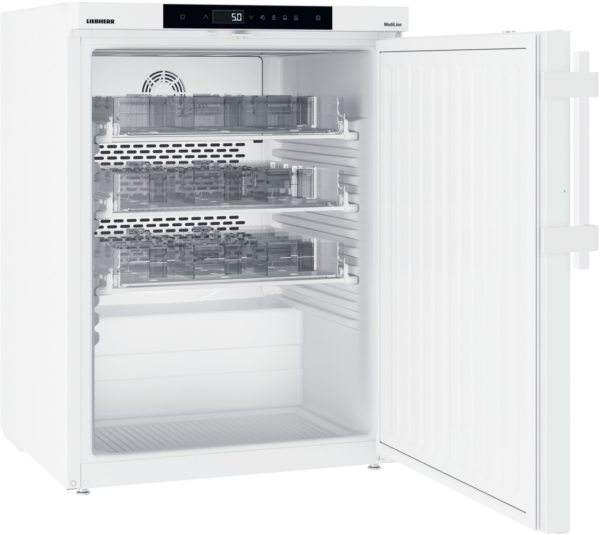

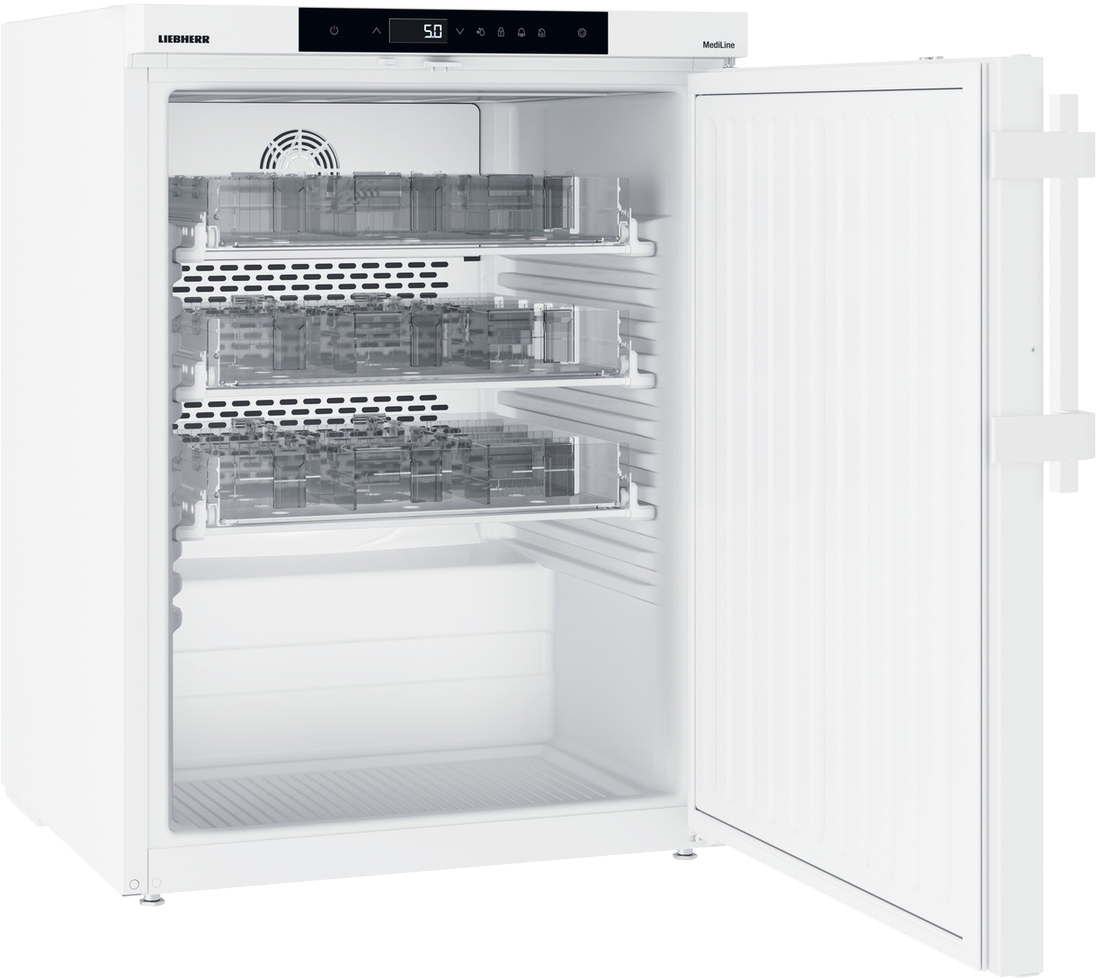

Liebherr Pharmacy Underbench Fridge MKUv 1610

The Liebherr Pharmacy Underbench Fridge MKUv 1610 is a professional, compact pharmacy refrigerator in the MediLine series, engineered for the secure storage of pharmaceuticals, vaccines, and temperature-sensitive medications in pharmacies, medical facilities, and clinical settings. Compliant with DIN 13277, this underbench fridge offers a 142-liter gross capacity and a fixed temperature setting of +5°C, maintaining an operating range of +2°C to +8°C for optimal medication preservation. Featuring fan-assisted cooling, a Comfort electronic controller with digital display, and a hygienic polystyrol liner, the MKUv 1610 ensures precise temperature stability and ease of use. With integrated alarms, SmartMonitoring compatibility, and a robust design, it is an energy-efficient solution for critical pharmaceutical applications, backed by Liebherr’s 3-year warranty.

Key Features

• DIN 13277 Compliance: Designed to meet stringent requirements for pharmaceutical storage, maintaining a fixed +5°C temperature with fluctuations between +2°C and +8°C (max. fluctuation 1.3°C, max. gradient 5°C), ensuring safe storage of vaccines and medications.

• Fan-Assisted Cooling: Forced-air cooling system with efficient fans cools freshly stored items rapidly and maintains uniform temperature distribution throughout the interior, enhancing reliability for sensitive pharmaceuticals.

• Energy Efficiency: Consumes 408 kWh/year (1.117 kWh/24h) using eco-friendly R600a refrigerant and high-efficiency compressors, minimizing operating costs and environmental impact.

• Hygienic Design: Commercial-grade molded polystyrol inner liner is robust, odorless, and easy to clean with rounded corners, supporting compliance with ISO EN 14644-1 Class 5 cleanroom standards for laboratory hygiene.

• Advanced Monitoring: Comfort controller with digital LED 7-segment display (0.1°C resolution), integrated data logger, min./max. temperature log, and HACCP-compliant AlarmLog for the last three temperature alarms and power failures; optional SmartMonitoring via RS 485 interface (requires SmartCoolingHub) for cloud-based monitoring.

• Safety and Security: Features visual/audible alarms for temperature deviations, door open (>1 minute), power failure (12-hour backup), and sensor defects, volt-free alarm contact for external systems, +2°C safety thermostat to prevent freezing, and a lockable door to prevent unauthorized access.

• Flexible Configuration: Reversible door hinges (factory-set to right), 3 adjustable plastic-coated wire shelves (45kg load each) or optional drawer system for optimal item overview, and an access port for external temperature probes; suitable for under-worktop installation with ventilation grille (200 cm² minimum) or 860mm niche height.

• User-Friendly Controls: Flush-mounted Comfort controller with an easy-clean membrane keypad, 1-point calibration for precise temperature control, and clear operating status symbols for intuitive operation; includes alarm test function to verify alarm systems without affecting refrigeration.

• Low Maintenance: Operates without filters, with manual defrost and replaceable plug-in door seals; self-closing door enhances convenience; requires only regular cleaning and calibration; operates quietly at 47 dB(A).

• Robust Construction: Durable steel housing and commercial-grade polystyrol interior ensure long-term reliability, with compact dimensions ideal for space-constrained environments.

Applications

• Pharmacies: Stores vaccines and medications with precise temperature control, meeting QCPP and DIN 13277 standards for safe pharmaceutical storage.

• Medical and Clinical Trials: Preserves clinical samples and medications with uniform temperature stability, ideal for hospitals and research settings.

• Cleanroom Environments: Suitable for ISO Class 5 cleanroom use, supporting applications requiring strict hygiene and contamination control.

• Healthcare Facilities: Provides secure storage for medical supplies, with monitoring features to meet regulatory standards.

• Laboratories: Supports storage of temperature-sensitive reagents and compounds, maintaining quality under controlled conditions.

• Model: MKUv 1610 MediLine

• Dimensions:

  • External (H/W/D): 820 x 601 x 618 mm

  • Internal (H/W/D): 670 x 440 x 435 mm

• Capacity:

  • Gross: 142 liters

  • Net: 109 liters

• Temperature Range: +2°C to +8°C (fixed at +5°C)

• Energy Consumption: 408 kWh/year; 1.117 kWh/24h

• Cooling System: Fan-assisted with manual defrost, R600a refrigerant

• Shelves: 3 adjustable plastic-coated wire shelves (45kg load each)

• Door Configuration: Reversible, right-hinged standard, self-closing, solid door

• Safety Features: +2°C safety thermostat, visual/audible alarms, volt-free alarm contact, integrated data logger, power failure alarm (12-hour backup), sensor defect alarm, door lock

• Compliance: DIN 13277, EN 60068-3, HACCP-compliant, NF X 15-140, ISO EN 14644-1 Class 5 cleanroom

• Power Supply: 230V, 50Hz

• Sound Rating: 47 dB(A)

• Net Weight: 46 kg

• Warranty: 3 years on scientific and healthcare products

• Safety Warnings: Follow user manual for safe operation; ensure ventilation grille (200 cm² minimum) or 860mm niche height for under-worktop installation; regular cleaning of drain hole required; contact Liebherr Customer Service for maintenance or seal replacement.
