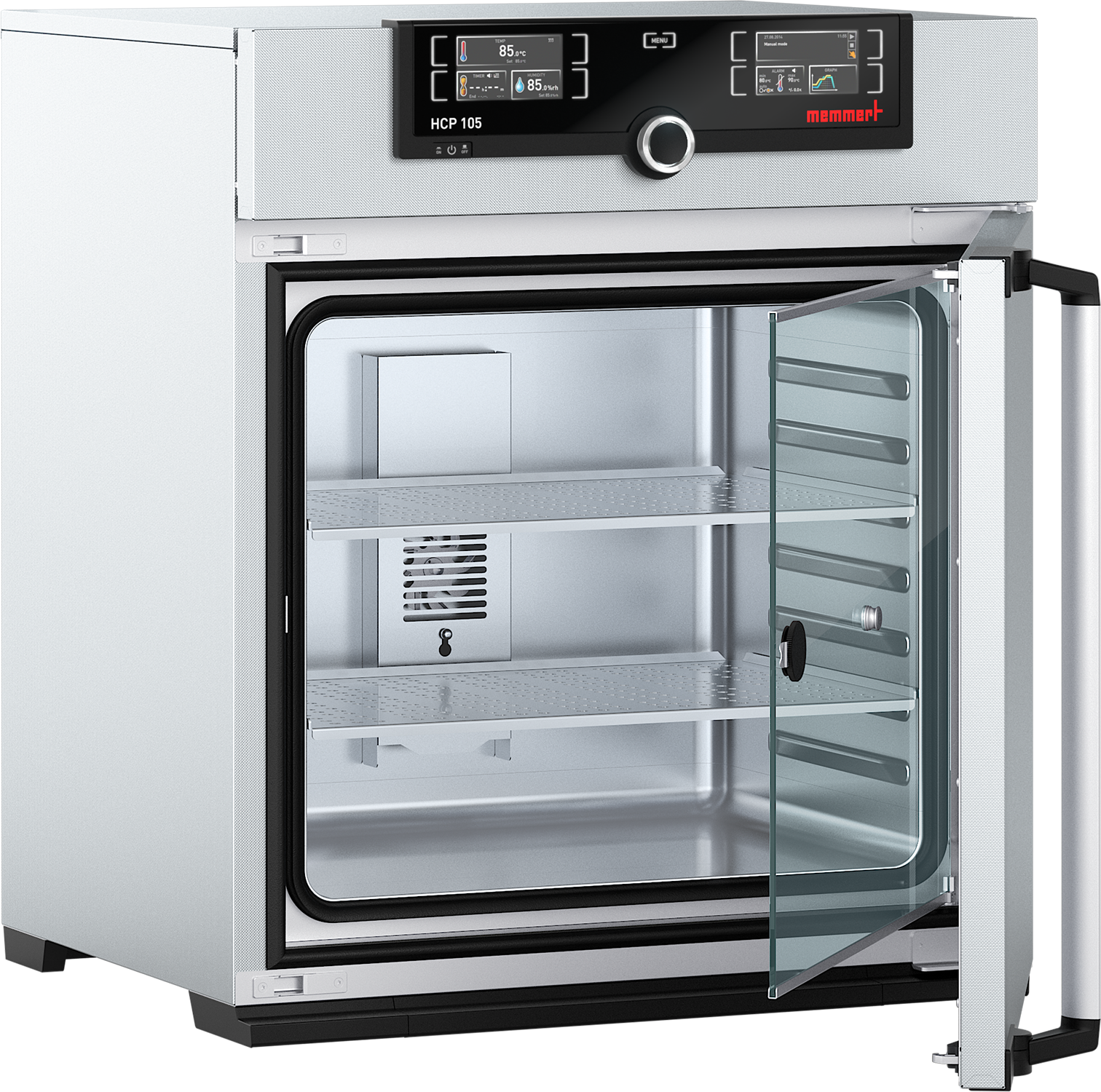

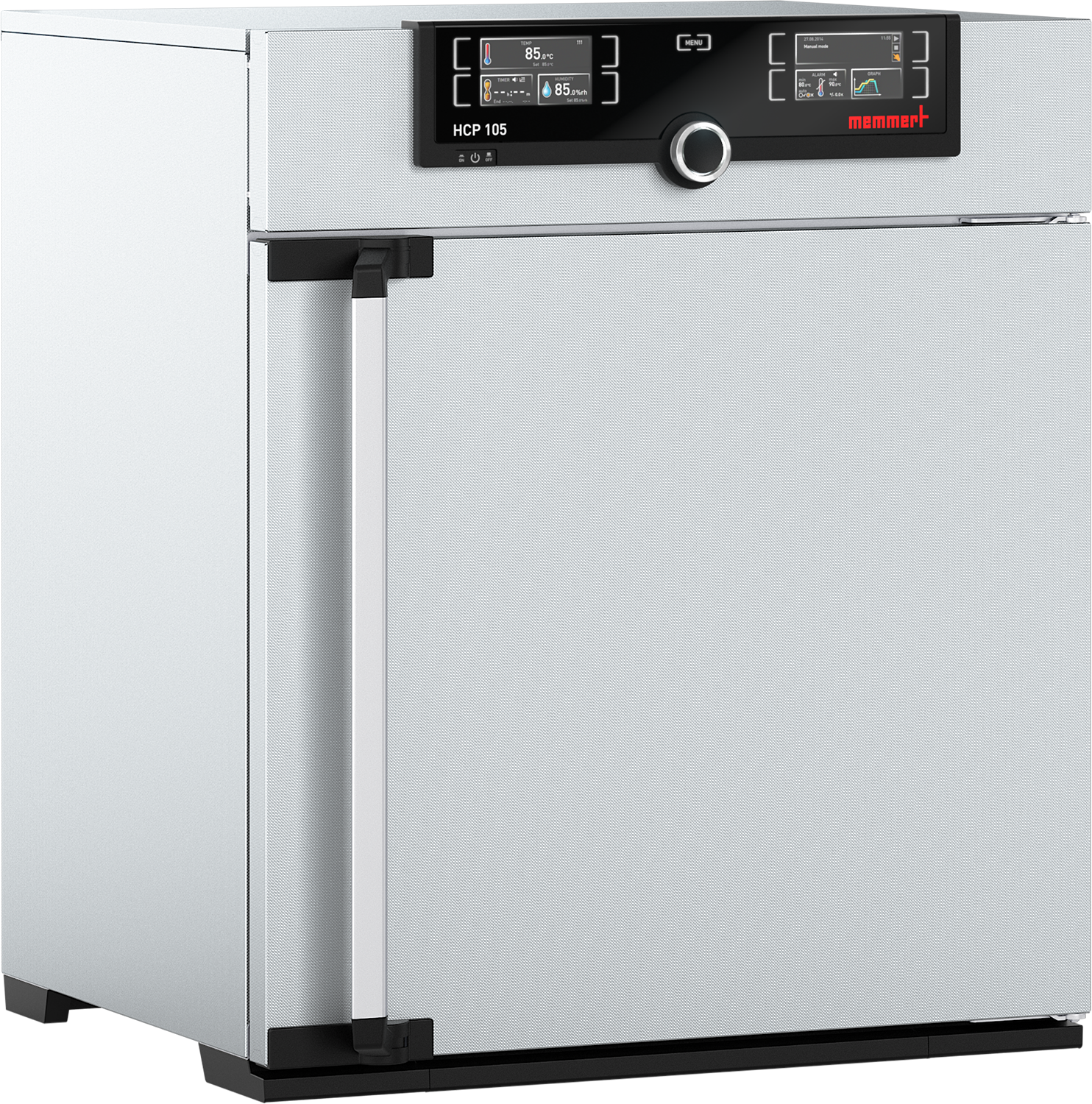

Memmert HCP105 Laboratory and Industrial Humidity Chamber, 107L

The Memmert HCP105 Humidity Chamber (107 L) is a compact, high-precision solution for humidity and temperature-controlled applications in laboratories and industrial environments. Designed for reproducible results, it offers exceptional uniformity, reliability, and energy efficiency for stability testing, conditioning, and climate simulation.

Operating within a temperature range of +7 °C above ambient to +90 °C and a humidity range of 20 % to 95 % RH, the HCP105 uses active humidity control and forced air circulation to maintain consistent test conditions. Its TwinDISPLAY touchscreen interface provides easy operation and precise control, while the durable stainless-steel chamber ensures long service life.

Key Attributes & Applications:

• Chamber volume of 107 L for small- to medium-scale testing

• Temperature range: +7 °C above ambient to +90 °C

• Humidity range: 20 % to 95 % RH with fast recovery times

• TwinDISPLAY touchscreen for intuitive operation and monitoring

• Ideal for pharmaceutical testing, climate simulation, and conditioning applications

• Compact design for space-efficient laboratory use

Model: HCP105
Manufacturer: Memmert
Chamber Volume: 107 L

Temperature Control

• Temperature range: +7 °C above ambient to +90 °C

• Temperature uniformity: ±0.3 °C

• Temperature resolution: 0.1 °C

• Sensors: 2 × Pt100 DIN Class A (4-wire system)

• Heating: Air-jacketed system for uniform distribution

Humidity Control

• Humidity range: 20 % – 95 % RH

• Humidification: Steam generator for precise humidity control

• Dehumidification: Cooled condensation system

• Humidity accuracy: ±0.5 % RH

• Water supply: Automatic feed with integrated water tank

Control System

• Controller: TwinDISPLAY ControlCOCKPIT with dual TFT colour screens

• Adjustable parameters: Temperature, humidity, and time

• Timer range: 1 minute to 99 days

• SetpointWAIT function ensures stability before timing

• Calibration: Three adjustable values for temperature and humidity

• Software: AtmoCONTROL for data logging and remote operation

Data & Communication

• Interfaces: USB and Ethernet (LAN)

• Automatic data backup during power loss

Safety Features

• Over-/under-temperature protection (TWW/TWB system)

• AutoSAFETY function dynamically adjusts tolerance

• Visual and acoustic alarms for critical conditions

• Integrated self-diagnostic system

Construction

• Interior: Stainless steel (1.4301 / ASTM 304)

• Exterior: Textured stainless-steel housing

• Door: Insulated stainless-steel door with glass inner door

• Chamber volume: 107 L

• Interior dimensions (W × H × D): 560 × 480 × 400 mm

• Exterior dimensions (W × H × D): 719 × 850 × 591 mm

• Maximum load per shelf: 15 kg

• Maximum number of shelves: 6

Electrical Data

• Voltage: 230 V / 50–60 Hz

• Power consumption: Approx. 1720 W

Standard Equipment

• Two stainless-steel shelves (electropolished)

• Integrated water tank

• Entry port (Ø 23 mm) with silicone plug

• Works calibration certificate (measuring point chamber centre) at 60 °C with 75 % rh

Applications

• Stability and humidity conditioning tests

• Material and product aging studies

• Environmental and climate simulations

• Quality assurance and research testing
