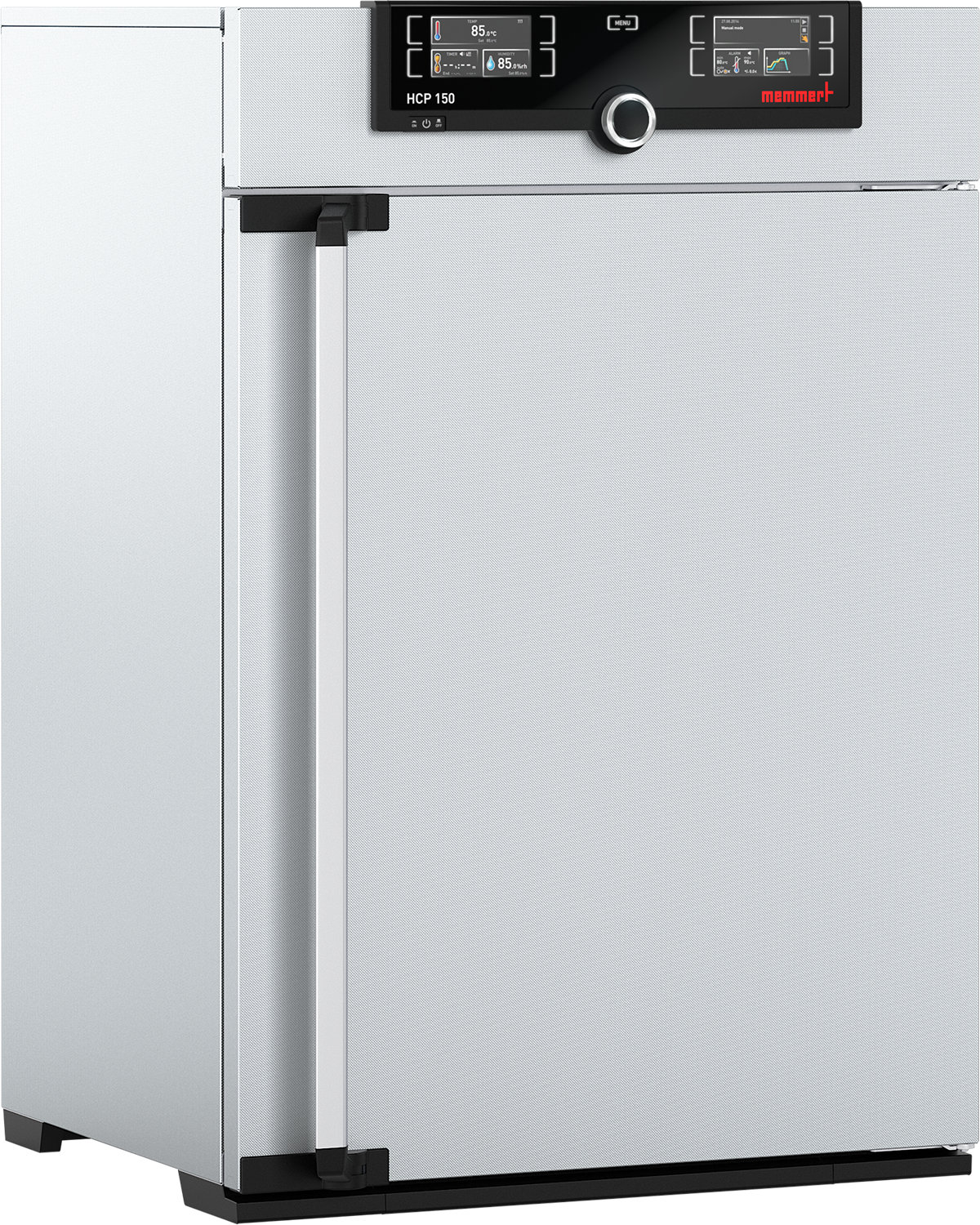

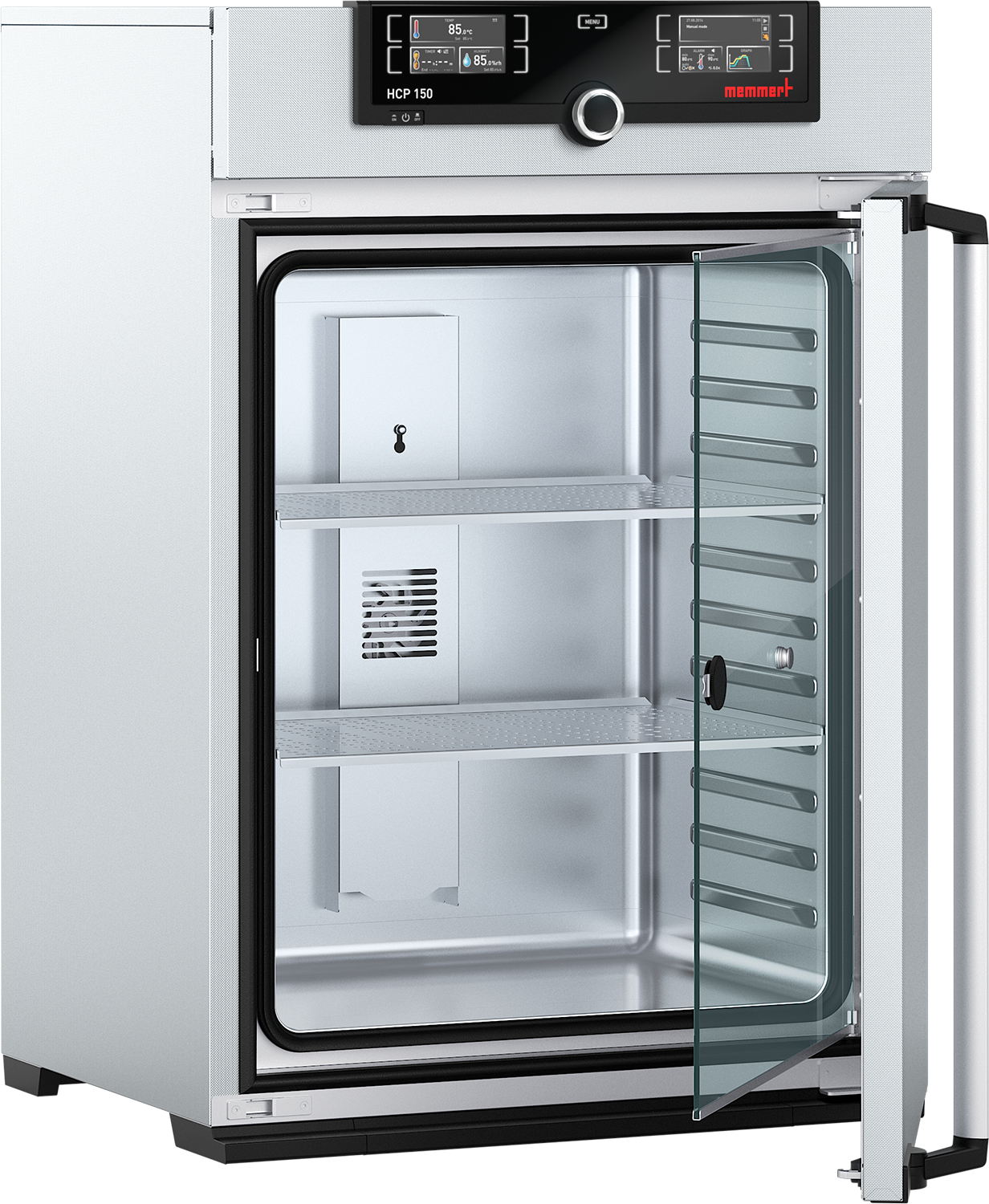

Memmert HCP150 Laboratory and Industrial Humidity Chamber, 156L

The Memmert HCP150 Humidity Chamber (156 L) is engineered for precise and stable control of temperature and humidity in laboratory and industrial environments. Designed for maximum reliability, it provides optimal conditions for stability testing, conditioning, accelerated aging, and environmental simulation.

With active humidity control and forced air circulation, the HCP150 ensures rapid recovery times and consistent climate conditions. The chamber operates within a temperature range of +7 °C above ambient to +90 °C and a humidity range of 20 % to 95 % RH, providing superior accuracy and uniformity. The intuitive TwinDISPLAY touchscreen offers user-friendly programming, monitoring, and full data documentation for quality assurance.

Key Attributes & Applications:

• Chamber volume of 156 L for medium-scale testing

• Temperature range from +7 °C above ambient to +90 °C

• Humidity range from 20 % to 95 % RH with active control

• TwinDISPLAY touchscreen for intuitive operation and monitoring

• Ideal for pharmaceutical stability testing, aging tests, and climate simulations

• Designed for continuous operation and long-term performance

Model: HCP150
Manufacturer: Memmert
Chamber Volume: 156 L

Temperature Control

• Temperature range: +7 °C above ambient to +90 °C

• Temperature uniformity: ±0.3 °C

• Temperature resolution: 0.1 °C

• Sensors: 2 × Pt100 DIN Class A (4-wire system)

• Heating: Air-jacketed system for uniform temperature distribution

• Cooling: Passive (via ambient offset)

Humidity Control

• Humidity range: 20 % – 95 % RH

• Humidification: Steam generator for fast and precise humidity control

• Dehumidification: Condensation system

• Humidity accuracy: ±0.5 % RH

• Water supply: Integrated automatic feed with refillable water tank

Control System

• Controller: TwinDISPLAY ControlCOCKPIT with dual TFT colour displays

• Adjustable parameters: Temperature, humidity, time, and programme cycles

• Timer range: 1 minute to 99 days

• SetpointWAIT ensures stability before timing begins

• Calibration: Three adjustable points for temperature and humidity

• Software: AtmoCONTROL for data logging, programming, and monitoring

Data & Communication

• Interfaces: USB and Ethernet (LAN)

• Automatic data backup during power interruptions

• Compatible with laboratory quality systems

Safety Features

• Over-/under-temperature protection (TWW/TWB system)

• AutoSAFETY function dynamically adjusts tolerance limits

• Visual and acoustic alarms for parameter deviations

• Built-in self-diagnostic and error notification system

Construction

• Interior: Stainless steel (1.4301 / ASTM 304)

• Exterior: Textured stainless-steel housing

• Door: Insulated stainless-steel door with glass inner panel

• Chamber volume: 156 L

• Interior dimensions (W × H × D): 560 × 700 × 400 mm

• Exterior dimensions (W × H × D): 719 × 1070 × 591 mm

• Maximum load per shelf: 15 kg

• Maximum number of shelves: 10

Electrical Data

• Voltage: 230 V / 50–60 Hz

• Power consumption: Approx. 1800 W

Standard Equipment

• Two stainless-steel shelves (electropolished)

• Integrated water tank with automatic feed

• Entry port (Ø 23 mm) with silicone plug

• Works calibration certificate (measuring point chamber centre) at 60 °C with 75 % rh

Applications

• Long-term stability and conditioning tests

• Accelerated aging and environmental simulation

• Controlled humidity testing for materials and pharmaceuticals

• Quality control, research, and development environments
