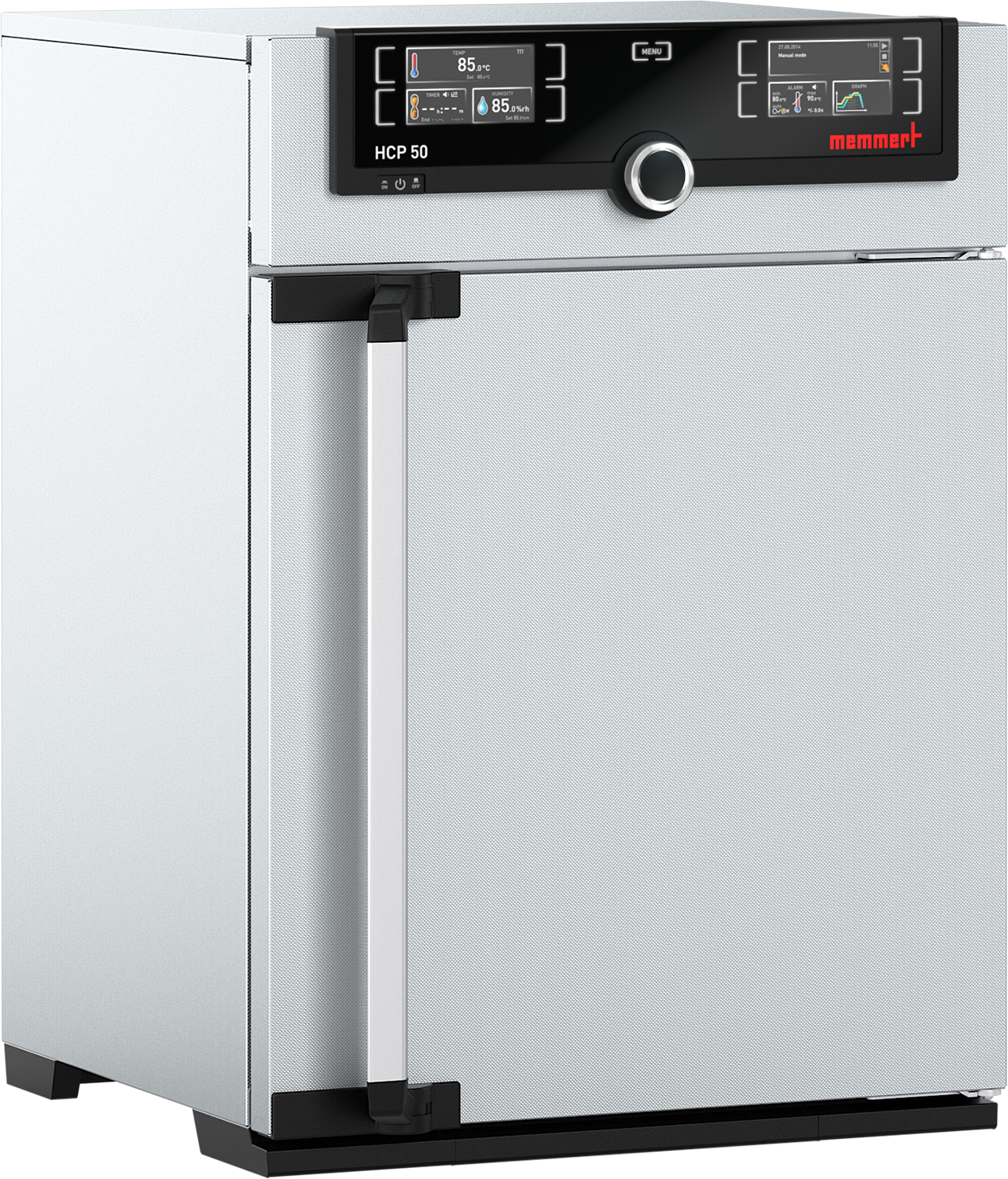

Memmert HCP50 Laboratory and Industrial Humidity Chamber, 56L

The Memmert HCP50 Humidity Chamber (56 L) is a compact and precise chamber designed for controlled humidity and temperature applications in laboratories and industrial environments. Offering outstanding uniformity and accuracy, it ensures reliable test conditions for long-term stability testing, conditioning, and accelerated ageing studies.

Powered by active humidity control and forced air circulation, the HCP50 delivers fast humidity recovery and precise control from 20 % to 95 % RH and +7 °C above ambient to +90 °C. The chamber’s TwinDISPLAY touchscreen interface allows intuitive operation, while its stainless-steel construction ensures durability and easy cleaning.

Key Attributes & Applications:

• Compact 56 L chamber for laboratory or small-batch testing

• Temperature range from +7 °C above ambient to +90 °C

• Humidity range from 20 % to 95 % RH with active control

• TwinDISPLAY touchscreen for accurate and simple operation

• Ideal for stability testing, conditioning, aging, and climate simulation

• Designed for continuous, long-term operation with high reliability

Model: HCP50
Manufacturer: Memmert
Chamber Volume: 56 L

Temperature Control

• Temperature range: +7 °C above ambient to +90 °C

• Temperature uniformity: ±0.3 °C

• Temperature resolution: 0.1 °C

• Sensors: 2 × Pt100 DIN Class A (4-wire system)

• Heating: Air-jacketed heating for uniform temperature distribution

• Cooling: None (temperature control via ambient offset)

Humidity Control

• Humidity range: 20 % – 95 % RH

• Humidification: Steam generator for fast and accurate control

• Dehumidification: Cooled condensation system

• Humidity accuracy: ±0.5 % RH

• Water supply: Integrated automatic feed with water tank

Control System

• Controller: TwinDISPLAY ControlCOCKPIT with dual TFT colour screens

• Adjustable parameters: Temperature, humidity, time, and programme cycles

• Timer range: 1 minute to 99 days

• SetpointWAIT function ensures stability before testing begins

• Calibration: Three adjustable values for temperature and humidity

• Software: AtmoCONTROL for data logging and remote control

Data & Communication

• Interfaces: USB and Ethernet (LAN)

• Data backup during power interruption

• Compatible with quality management systems

Safety Features

• Over-/under-temperature protection (TWW/TWB system)

• AutoSAFETY function dynamically adjusts tolerance

• Visual and acoustic alarms

• Self-diagnostic error monitoring

Construction

• Interior: Stainless steel (1.4301 / ASTM 304)

• Exterior: Textured stainless-steel housing

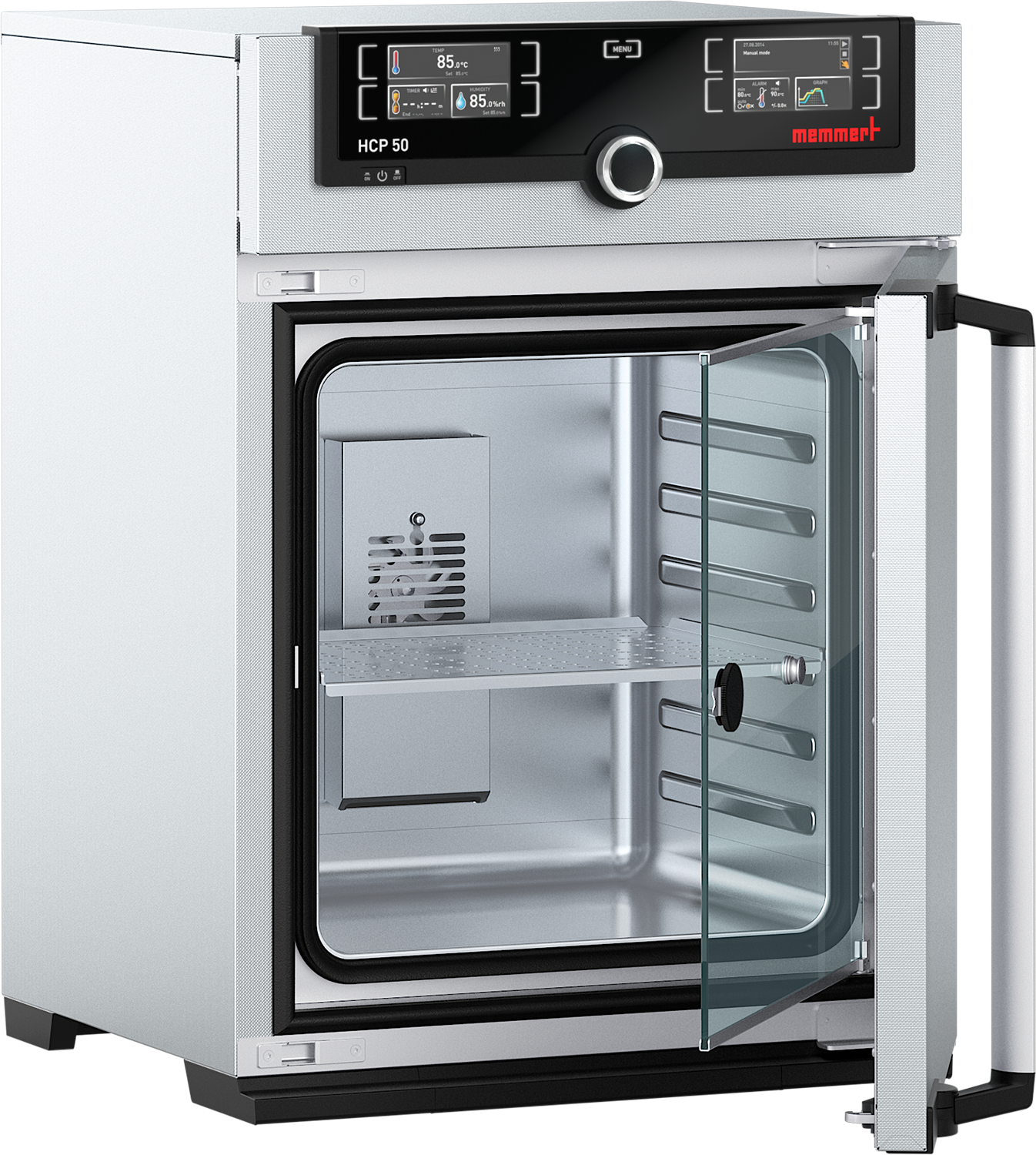

• Door: Fully insulated stainless-steel door with glass inner door

• Chamber volume: 56 L

• Interior dimensions (W × H × D): 400 × 425 × 330 mm

• Exterior dimensions (W × H × D): 559 × 795 × 521 mm

• Maximum load per shelf: 15 kg

• Maximum number of shelves: 5

Electrical Data

• Voltage: 230 V / 50–60 Hz

• Power consumption: Approx. 1520 W

Standard Equipment

• Two stainless-steel shelves (electropolished)

• Integrated water tank

• Entry port (Ø 23 mm) with silicone plug

• Works calibration certificate (measuring point chamber centre) at 60 °C with 75 % rh

Applications

• Long-term stability and conditioning tests

• Accelerated ageing and material testing

• Humidity-controlled incubation and storage

• Pharmaceutical and industrial environmental simulations
