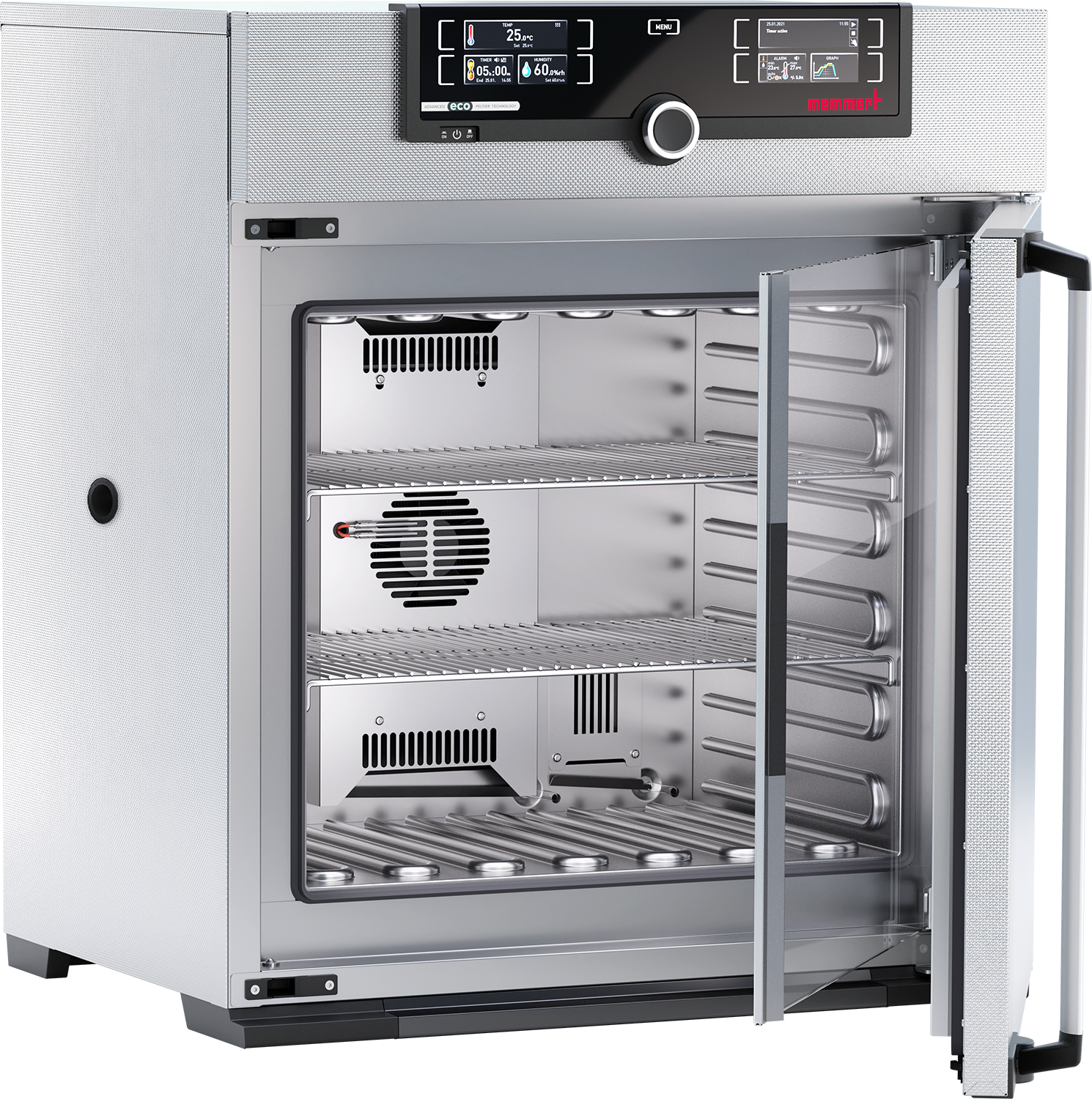

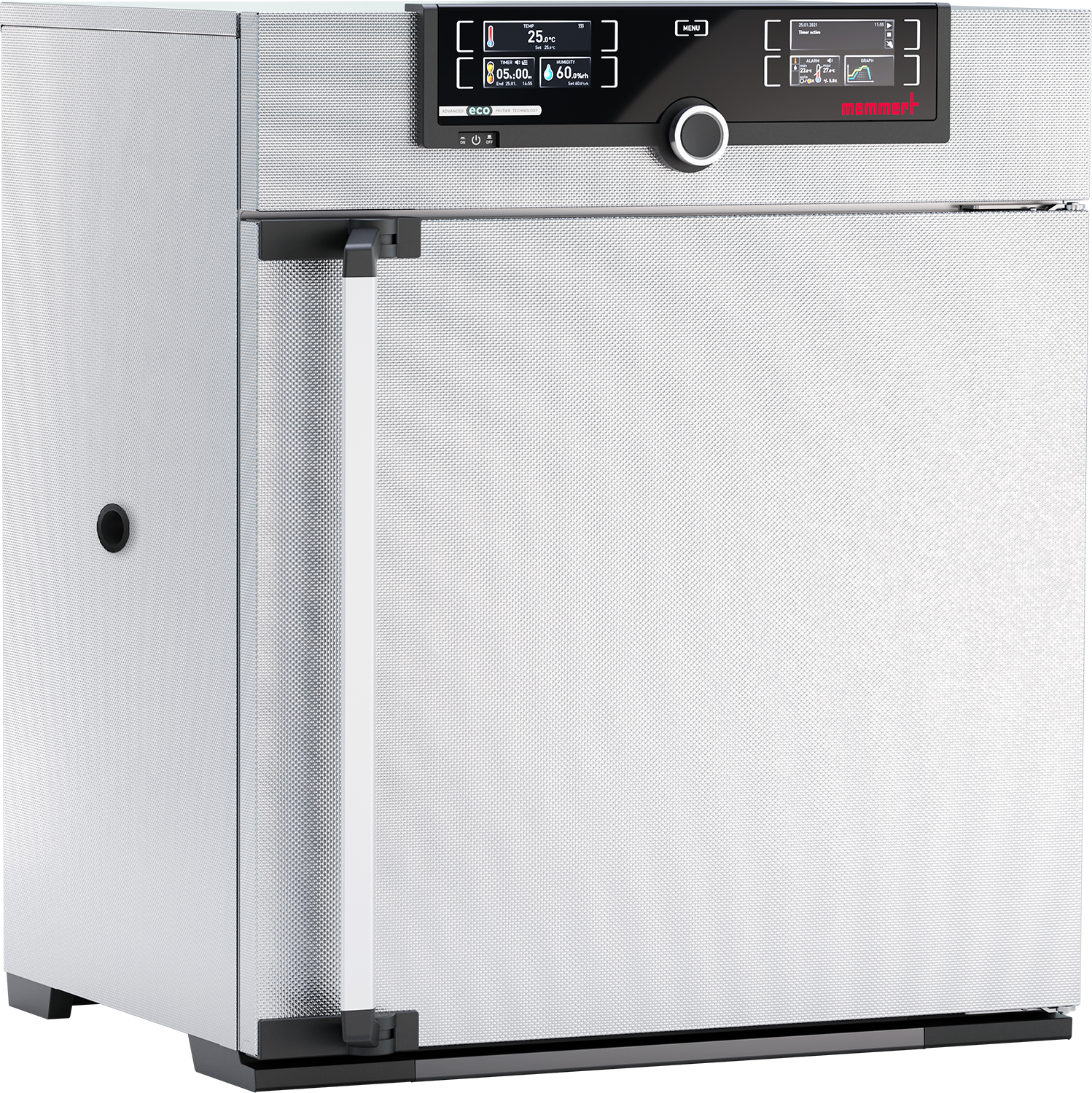

Memmert HPP110eco, Laboratory and Industrial Constant Climate Chamber, 108L

The Memmert HPP110eco Constant Climate Chamber (108 L) is a compact, high-precision environmental chamber designed for reliable temperature and humidity control in laboratory and industrial applications. Using advanced Peltier technology, it delivers exceptionally stable conditions with minimal energy consumption, making it ideal for long-term stability tests, material conditioning, and environmental simulations.

With its TwinDISPLAY touchscreen interface, intuitive operation, and integrated data logging, the HPP110eco ensures easy monitoring and documentation of all test parameters. Built for efficiency, quiet performance, and precision, this model is perfect for controlled climate testing in research, pharmaceutical, and quality assurance environments.

Key Attributes & Applications:

• Compact 108 L chamber suitable for small to medium workloads

• Temperature range from 0 °C to +70 °C, humidity range from 10 % to 90 % RH

• Energy-efficient Peltier heating and cooling for low running costs

• TwinDISPLAY touchscreen for intuitive control and monitoring

• Integrated USB and Ethernet interfaces for data logging

• Ideal for pharmaceutical stability testing, environmental simulation, and material conditioning

Model: HPP110eco
Manufacturer: Memmert
Chamber Volume: 108 L

Temperature Control

• Temperature range (without humidity): 0 °C to +70 °C

• Temperature range (with humidity): +5 °C to +70 °C

• Temperature uniformity: ±0.1 °C

• Sensors: 2 × Pt100 DIN Class A (4-wire, redundant monitoring)

• Heating/Cooling technology: Energy-saving Peltier system

• Ambient operating temperature: +16 °C to +40 °C

Humidity Control

• Humidity range: 10 % – 90 % RH

• Humidification: Hot steam generator

• Dehumidification: Cold trap via Peltier technology

• Humidity accuracy: ±0.5 % RH

• Water supply: External water tank with self-priming pump

Control System

• Controller: TwinDISPLAY ControlCOCKPIT with two TFT colour displays

• Adjustable parameters: Temperature, humidity, time, and programme cycles

• Timer: 1 minute to 99 days

• SetpointWAIT function ensures conditions are stable before timing begins

• Calibration: Three adjustable points for temperature and humidity

• Software: AtmoCONTROL for remote monitoring and documentation

Data & Communication

• Interfaces: Ethernet (LAN) and USB

• Data storage: Automatic backup during power interruption

• Compatible with external monitoring and quality control systems

Safety Features

• Over- and under-temperature protection (TWW/TWB system)

• AutoSAFETY system dynamically monitors tolerance limits

• Visual and acoustic alarms for deviations

• Built-in self-diagnostic function for fault detection

Construction

• Interior: Stainless steel (1.4301 / ASTM 304)

• Exterior: Textured stainless-steel housing with zinc-plated rear panel

• Door: Fully insulated stainless-steel door with glass inner door

• Chamber volume: 108 L

• Interior dimensions (W × H × D): 560 × 480 × 400 mm

• Exterior dimensions (W × H × D): 745 × 864 × 555 mm

• Maximum total load: 150 kg

• Maximum load per shelf: 20 kg

• Maximum number of shelves: 5

Electrical Data

• Voltage: 230 V / 50–60 Hz

• Power consumption: Approx. 420 W

Standard Equipment

• Two stainless-steel shelves (electropolished)

• Water tank with connection hose

• Entry port (Ø 18 mm) with silicone plug

• Calibration certificate at +25 °C/60 % RH and +40 °C/75 % RH

Applications

• Stability testing in accordance with ICH Q1A guidelines

• Environmental and material simulation testing

• Long-term storage of pharmaceuticals, cosmetics, and food

• Climate-controlled research and industrial testing
