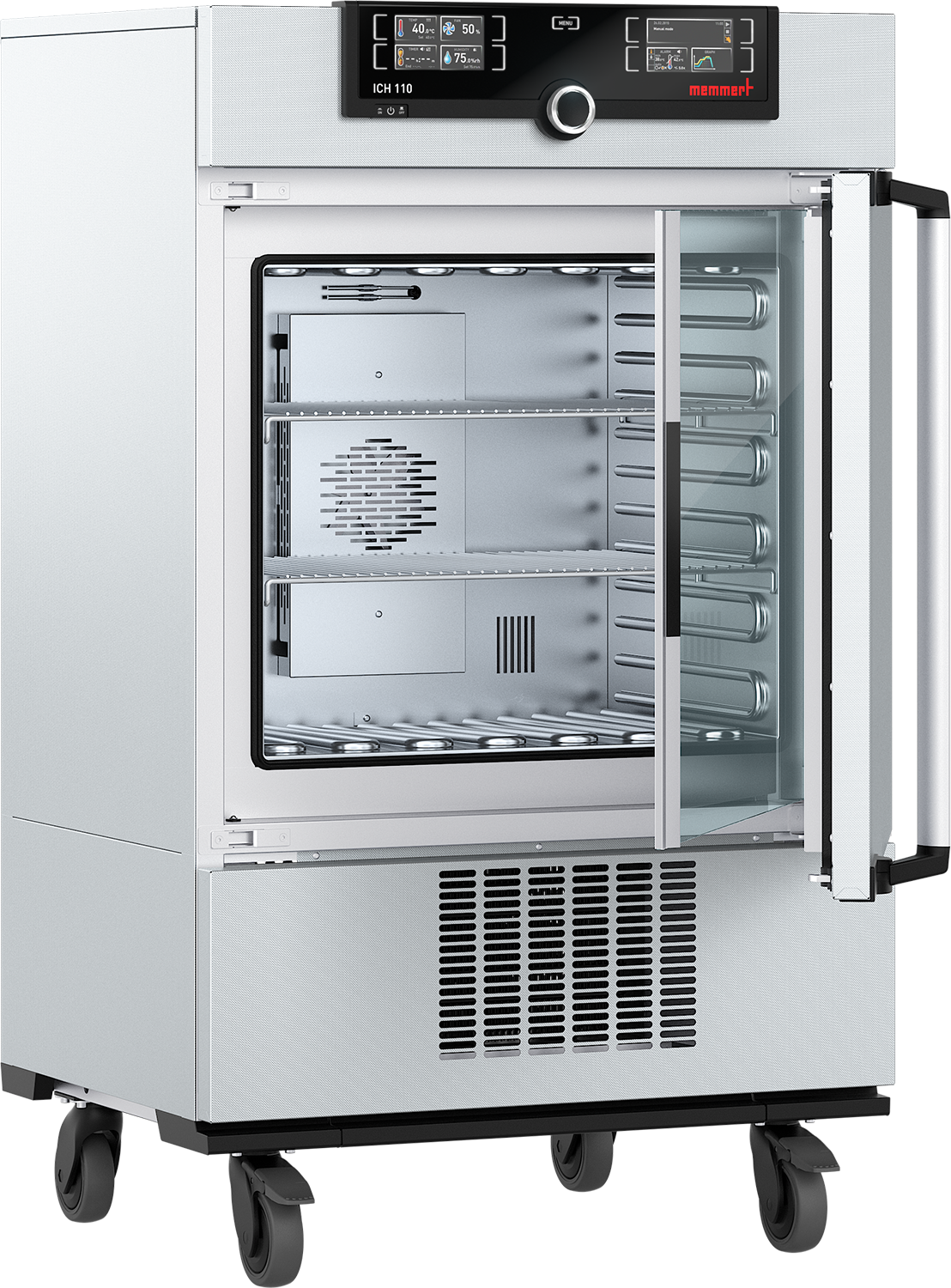

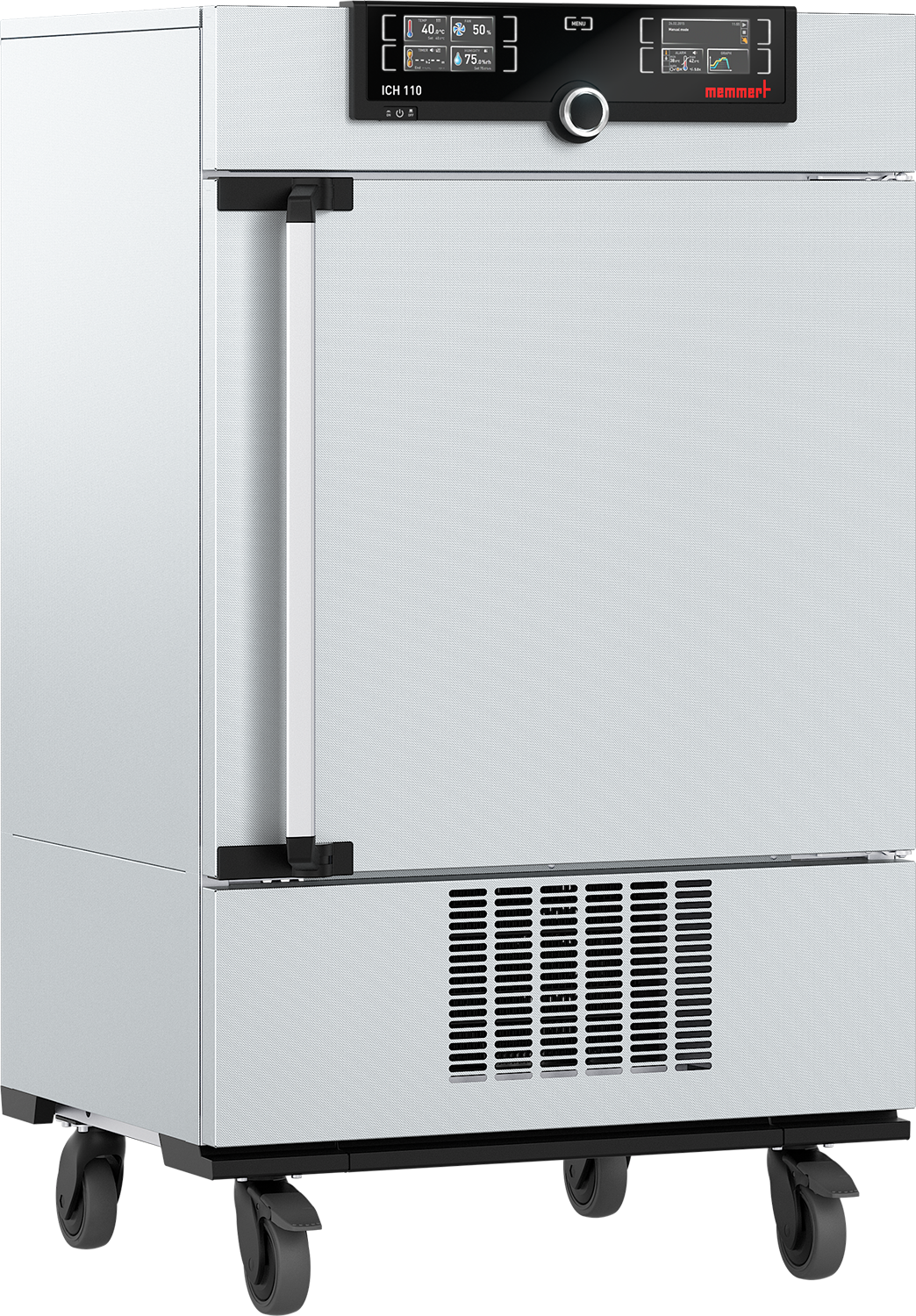

Memmert ICH110 Laboratory and Industrial Climate and Stability Chamber, 108L

The Memmert ICH110 Climate and Stability Chamber (108 L) is a compact, high-precision chamber for stable temperature and humidity testing across laboratory and industrial environments. Designed in compliance with ICH Q1A guidelines, it delivers excellent uniformity and reproducibility for pharmaceutical stability studies, environmental simulations, and long-term material conditioning.

Featuring TwinDISPLAY touchscreen control and an advanced compressor-based cooling system, the ICH110 provides intuitive operation, low energy consumption, and reliable results under all testing conditions.

Key Attributes & Applications:

• Compact 108 L chamber for small-scale or batch testing

• Temperature range: –10 °C to +60 °C, humidity range: 10 % to 80 % RH

• Excellent uniformity for precise stability testing

• TwinDISPLAY touchscreen for easy control and monitoring

• Ideal for pharmaceutical, cosmetic, and food applications

• Fully compliant with ICH Q1A standards

Model: ICH110
Manufacturer: Memmert
Chamber Volume: 108 L

Temperature Control

• Temperature range: –10 °C to +60 °C

• Uniformity: ±0.1 °C

• Sensors: 2 × Pt100 DIN Class A (4-wire system)

• Cooling technology: Compressor-based system

• Heating: Air-jacketed heating for precise distribution

• Ambient operating temperature: +15 °C to +28 °C

Humidity Control

• Humidity range: 10 % – 80 % RH

• Humidification: Steam generation

• Dehumidification: Condensation via cooling system

• Accuracy: ±0.5 % RH

• Water supply: External tank or direct connection

Control System

• Controller: TwinDISPLAY ControlCOCKPIT with dual TFT screens

• Adjustable parameters: Temperature, humidity, and time

• Timer: 1 minute to 99 days

• SetpointWAIT function for stable condition assurance

• Calibration: Three adjustable values

• Software: AtmoCONTROL for programming and data management

Data & Communication

• Interfaces: Ethernet (LAN) and USB

• Data logging and storage with automatic power failure recovery

Safety Features

• Over-/under-temperature protection (TWW/TWB)

• AutoSAFETY system with adaptive tolerance control

• Visual and acoustic alarms

• Self-diagnostic system for error detection

Construction

• Interior: Stainless steel (1.4301 / ASTM 304)

• Exterior: Stainless-steel housing with zinc-plated rear panel

• Door: Fully insulated with glass inner door

• Chamber volume: 108 L

• Interior dimensions (W × H × D): 560 × 480 × 400 mm

• Exterior dimensions (W × H × D): 745 × 1233 × 585 mm

• Maximum load per shelf: 20 kg

• Maximum number of shelves: 5

Electrical Data

• Voltage: 230 V / 50–60 Hz

• Power consumption: Approx. 1350 W

Standard Equipment

• Two stainless-steel shelves (electropolished)

• Water tank and connection hose

• Entry port (Ø 23 mm) with silicone plug

• Calibration certificate: standard values +10 °C and +37 °C, 60 % rh at +30 °C

Applications

• Pharmaceutical stability testing (ICH Q1A compliant)

• Environmental and materials testing

• Controlled storage of samples, cosmetics, and food

• Research and industrial quality testing
