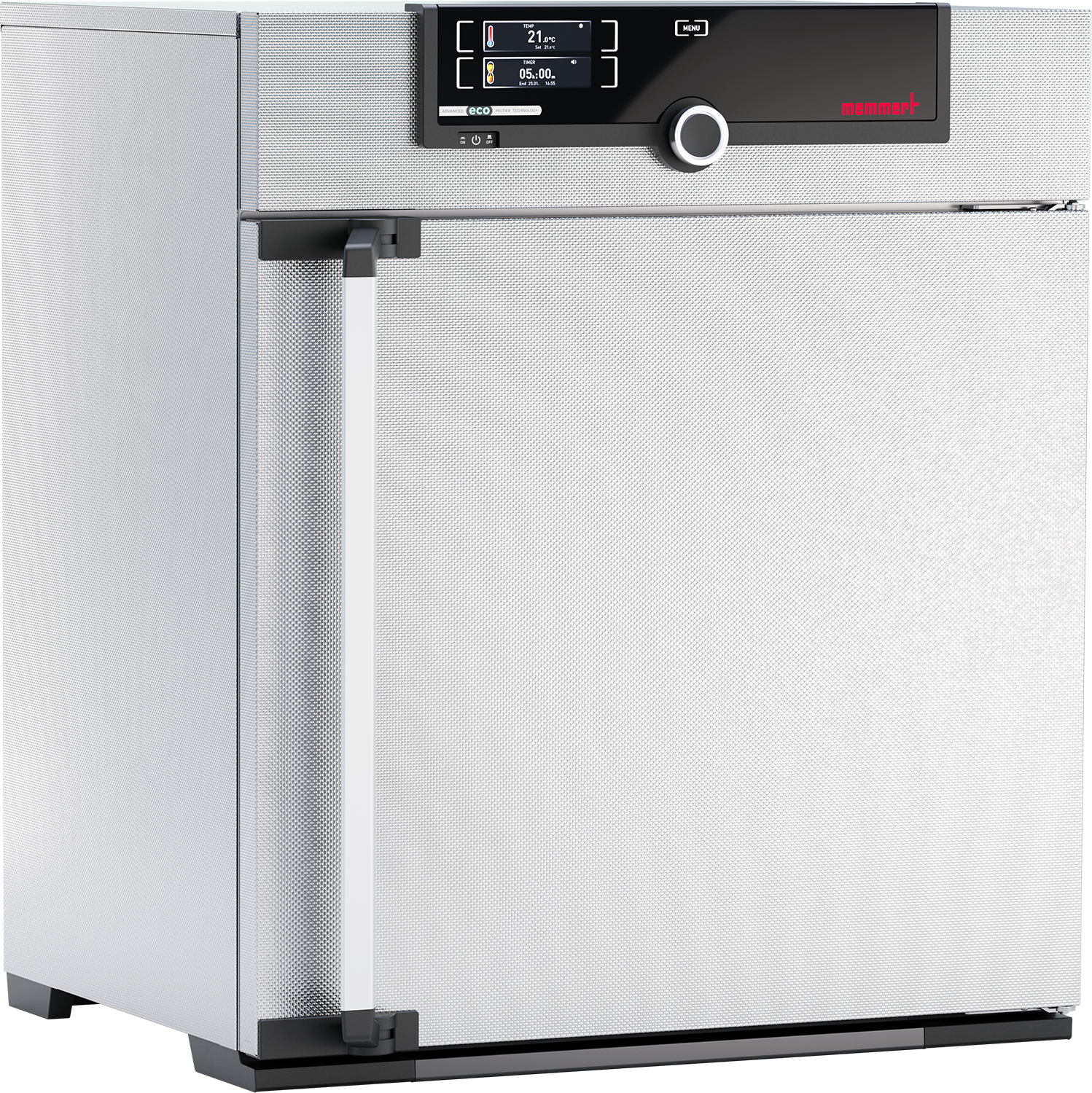

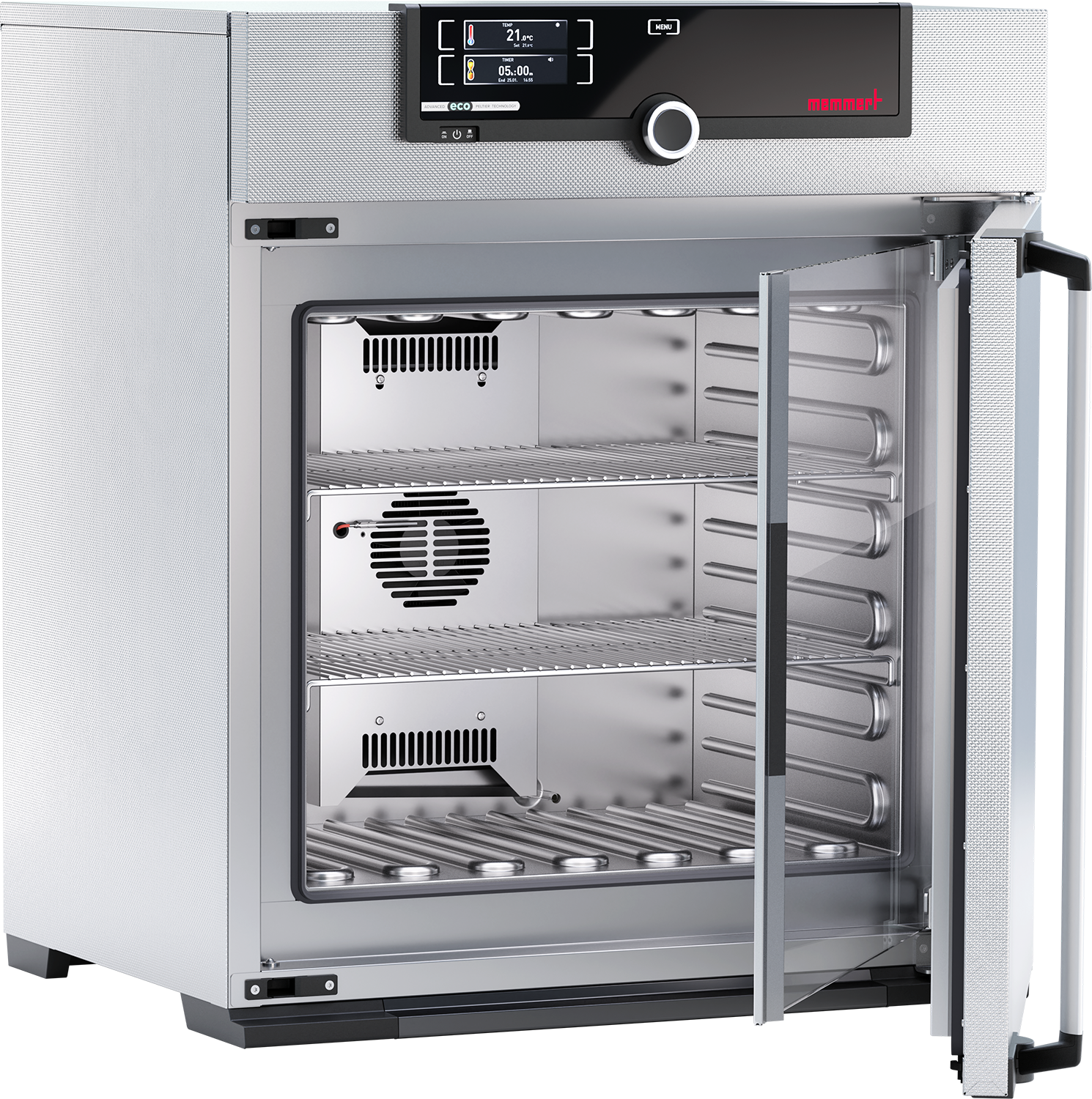

Memmert IPP110eco Laboratory and Industrial Incubator, Peltier cooled, 108L

The Memmert IPP110eco Peltier-Cooled Incubator offers sustainable, high-precision temperature control for applications in research, pharmaceuticals, food technology, and life sciences. Its innovative Peltier heating/cooling system provides uniform conditions without vibrations or noise, making it excellent for sensitive samples such as cell cultures, bacterial cultivation, and stability testing in a convenient 108-liter chamber.

• Capacity: 108 liters with advanced Peltier technology
• Temperature Range: 0°C to +70°C
• Precision: 0.1°C setting accuracy with dual Pt100 sensors
• Eco-Friendly: Silent, vibration-free, and highly energy-efficient
• Display: TwinDISPLAY for advanced programming and monitoring

General Specifications

• Product Type: Peltier-cooled laboratory and industrial incubator
• Model: IPP110eco (TwinDISPLAY, eco line)
• Working Temperature Range: 0°C to +70°C
• Setting Temperature Range: 0°C to +70°C
• Setting Accuracy: 0.1°C
• Volume: 108 liters

Dimensions and Weight

• Interior Dimensions (W x H x D): 560 mm x 480 mm x 400 mm
• Exterior Dimensions (W x H x D): 745 mm x 864 mm x 555 mm (plus door handle and connections)
• Net Weight: Approx. 63 kg
• Max. Loading per Shelf: 20 kg
• Max. Loading of Chamber: 150 kg
• Max. Number of Shelves: 5

Materials and Construction

• Interior Material: Stainless steel, material 1.4301 (ASTM 304), with integrated large-area heating/cooling
• Housing Material: Textured stainless steel, rear zinc-plated steel
• Door: Fully insulated stainless steel door with 2-point locking and inner glass door

Temperature Control and Monitoring

• Temperature Sensors: 2 Pt100 sensors DIN class A in 4-wire-circuit for mutual monitoring
• Control Technology: TwinDISPLAY adaptive multifunctional digital PID-microprocessor controller
• Display: High-definition TFT-color touchscreen with graphical interface
• Functions: SetpointWAIT, adjustable parameters, AtmoCONTROL software support
• Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Ventilation and Airflow

• Heating/Cooling System: Advanced Peltier system for seamless, energy-efficient operation
• Air Circulation: High-performance air turbine for optimal temperature distribution
• Fresh Air: Electronically adjustable air flap

Safety Features

• Overtemperature Protection: Adjustable electronic overtemperature monitor (TWW) and mechanical temperature limiter (TWB Class 2)
• Auto-Safety: Integrated automatic safety functions
• Alarm: Visual and acoustic alarms for temperature deviations and door open

Electrical Data

• Voltage Options: 230 V or 115 V, 50/60 Hz (approx. 320 W)
• Standards Compliance: CE, EAC Eurasian Conformity

Applications

• Primary Uses: Microbiology, bacterial cultivation, stability testing, protein crystallization, food research, pharmaceutics, long-term storage
