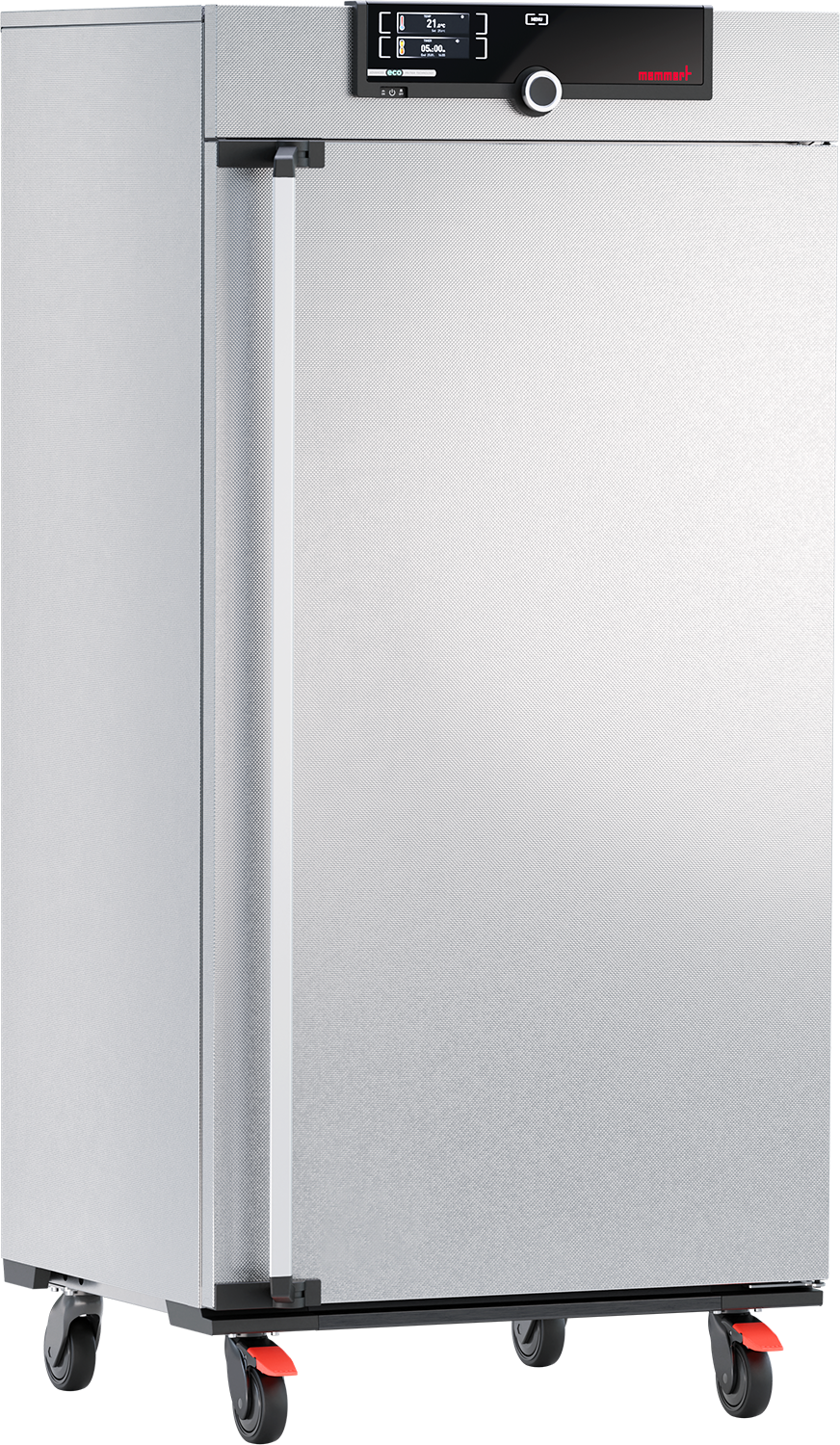

Memmert, IPP410eco, Laboratory and Industrial Incubator, Peltier cooled, 384L

The Memmert IPP410eco is a mid-size, energy-efficient Peltier-cooled incubator perfect for precise temperature control in laboratories and industrial applications. Featuring advanced Peltier technology for seamless heating and active cooling, it delivers vibration-free, nearly silent operation with superior temperature homogeneity, ideal for microbiological tests, stability studies, protein crystallization, and climate-sensitive storage from 0°C to +70°C.

• Product Type: Peltier-cooled laboratory and industrial incubator
• Volume: 384 liters
• Temperature Range: 0°C to +70°C
• Setting Accuracy: 0.1°C
• Convection Type: Forced air circulation with Peltier system
• Display/Controller: TwinDISPLAY adaptive touchscreen
• Energy Efficiency: Up to 90% lower energy consumption than compressor models

General Specifications

• Product Type: Peltier-cooled laboratory and industrial incubator
• Model: IPP410eco (TwinDISPLAY, eco line)
• Working Temperature Range: 0°C to +70°C
• Setting Temperature Range: 0°C to +70°C
• Setting Accuracy: 0.1°C
• Volume: 384 liters

Dimensions and Weight

• Interior Dimensions (W x H x D): 640 mm x 1200 mm x 500 mm
• Exterior Dimensions (W x H x D): 824 mm x 1720 mm x 655 mm (plus door handle and connections)
• Net Weight: Approx. 139 kg
• Max. Loading per Shelf: 20 kg
• Max. Loading of Chamber: 200 kg
• Max. Number of Shelves: 14

Materials and Construction

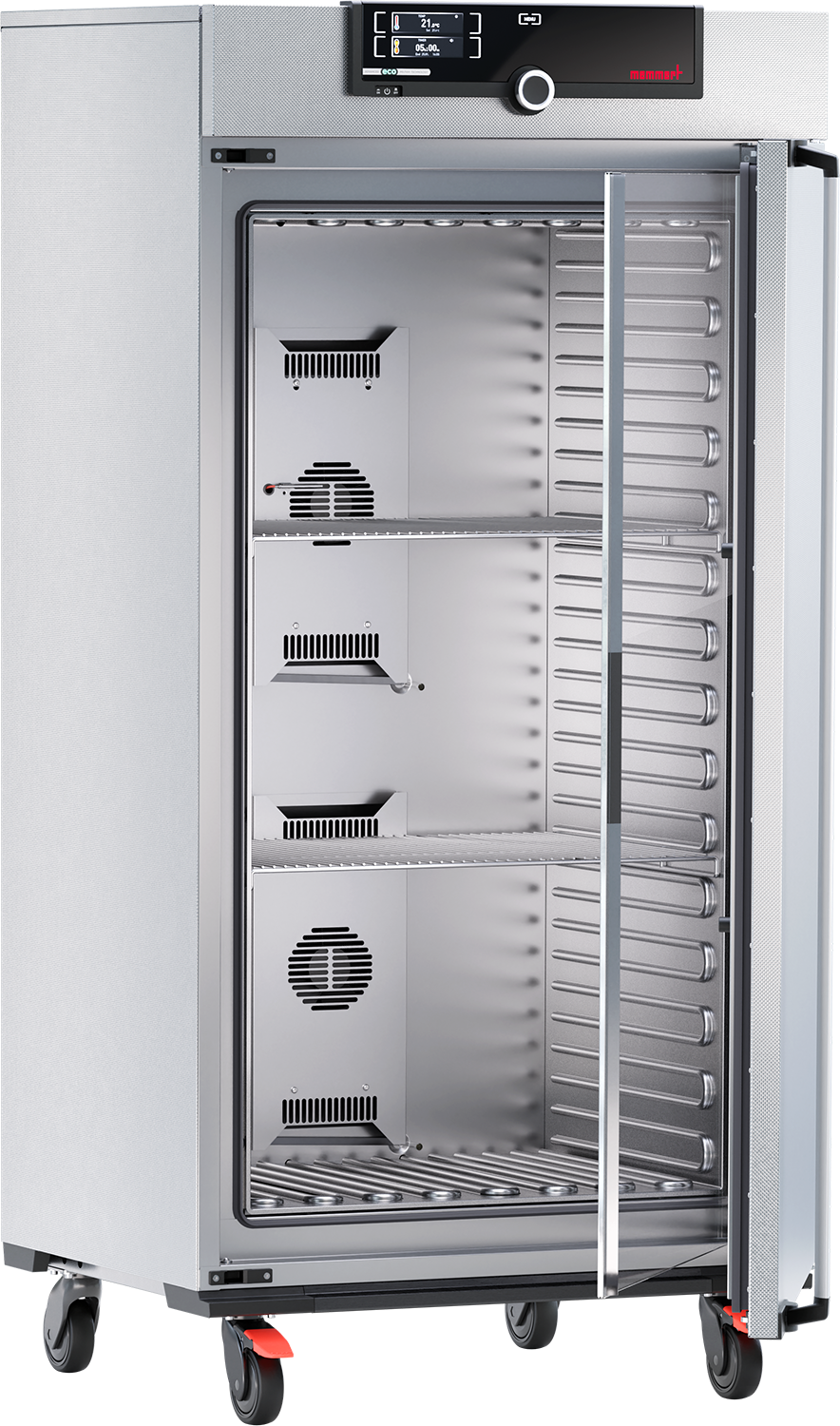

• Interior Material: Stainless steel, material 1.4301 (ASTM 304), with integrated large-area heating/cooling
• Housing Material: Textured stainless steel, rear zinc-plated steel
• Door: Fully insulated stainless steel door with 2-point locking and inner glass door

Temperature Control and Monitoring

• Temperature Sensors: 2 Pt100 sensors DIN class A in 4-wire-circuit for mutual monitoring
• Control Technology: TwinDISPLAY adaptive multifunctional digital PID-microprocessor controller
• Display: High-definition TFT-color touchscreen with graphical interface
• Functions: SetpointWAIT, adjustable parameters, AtmoCONTROL software support
• Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Ventilation and Airflow

• Heating/Cooling System: Advanced Peltier system for seamless, energy-efficient operation
• Air Circulation: High-performance air turbine for optimal temperature distribution
• Fresh Air: Electronically adjustable air flap

Safety Features

• Overtemperature Protection: Adjustable electronic overtemperature monitor (TWW) and mechanical temperature limiter (TWB Class 2)
• Auto-Safety: Integrated automatic safety functions
• Alarm: Visual and acoustic alarms for temperature deviations and door open

Electrical Data

• Voltage Options: 230 V, 50/60 Hz (approx. 600 W heating / 600 W cooling) or 115 V available
• Standards Compliance: CE, EAC Eurasian Conformity

Applications

• Primary Uses: Microbiology, bacterial cultivation, stability testing, protein crystallization, food research, pharmaceutics, long-term storage
