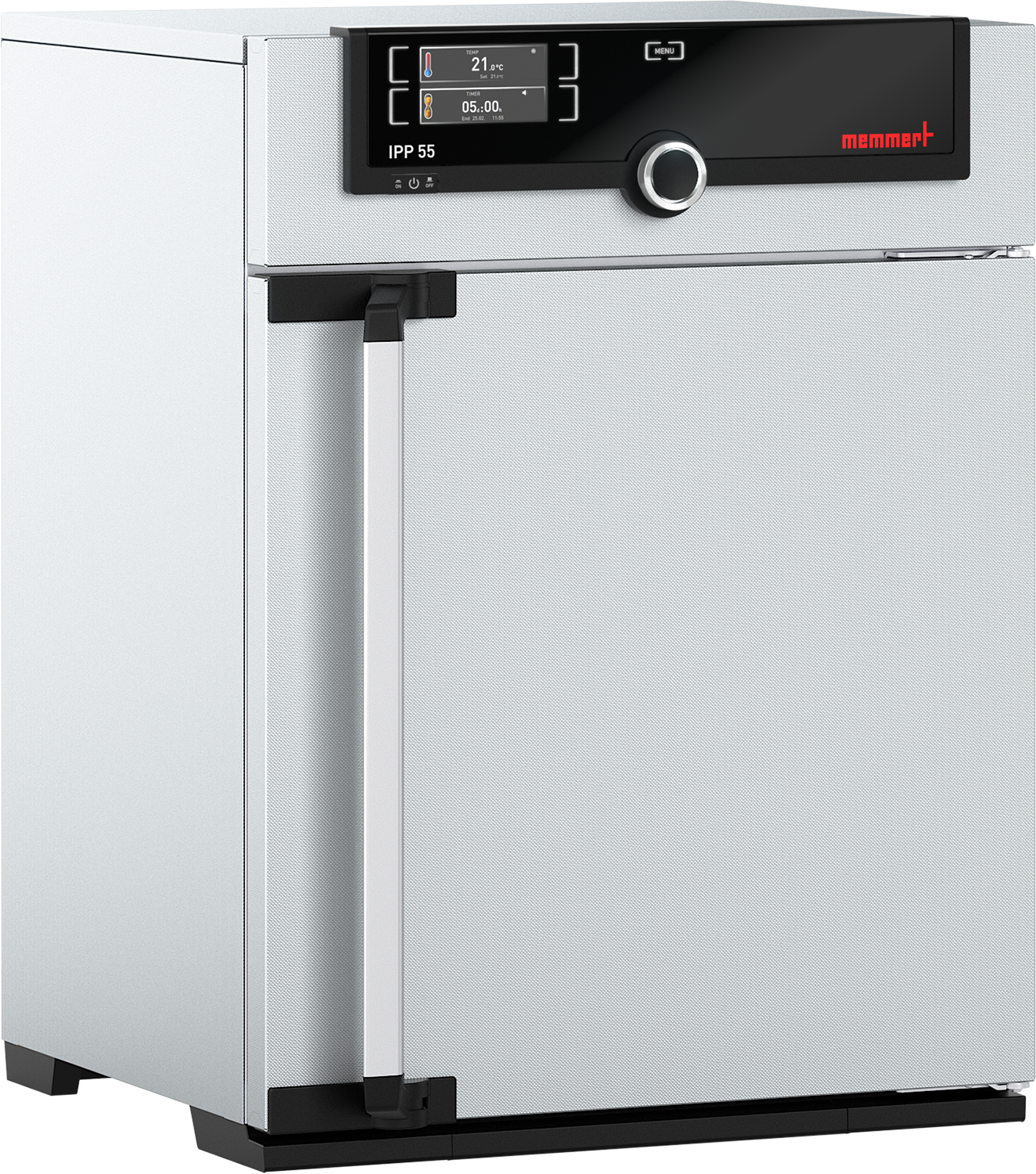

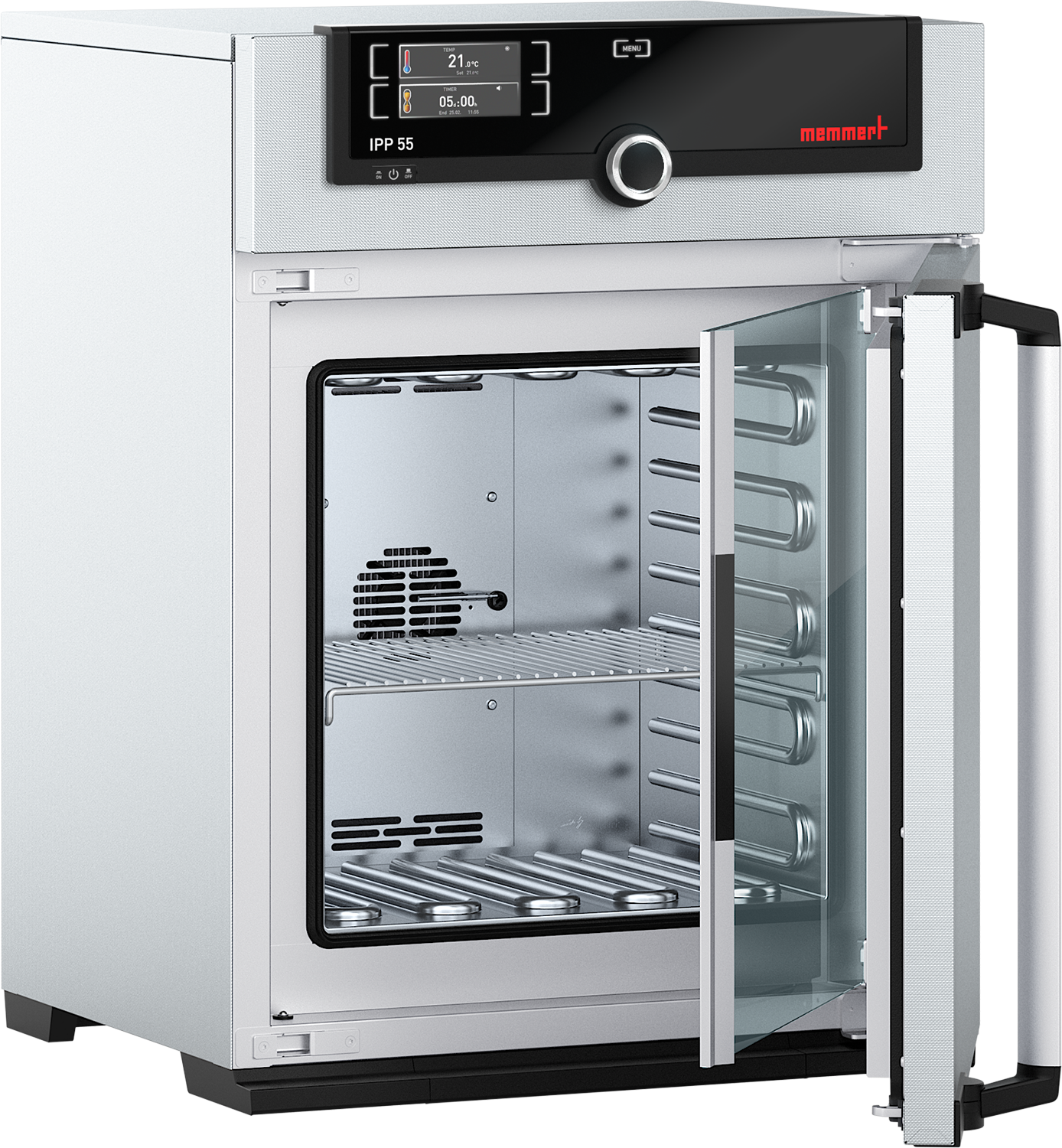

Memmert IPP55 Laboratory and Industrial Incubator, Peltier cooled, 53L

The Memmert IPP55 is a compact, energy-efficient Peltier-cooled incubator designed for precise temperature control in laboratory applications. With advanced Peltier technology for seamless heating and active cooling, it offers vibration-free, nearly silent operation and outstanding temperature uniformity, making it ideal for microbiological tests, bacterial cultivation, cell culture, and stability studies near ambient temperatures.

• Product Type: Peltier-cooled laboratory incubator
• Volume: 53 liters
• Temperature Range: 0°C to +70°C
• Setting Accuracy: 0.1°C
• Convection Type: Forced air circulation with Peltier system
• Display/Controller: SingleDISPLAY or TwinDISPLAY adaptive touchscreen
• Energy Efficiency: Up to 90% lower energy consumption than compressor models

General Specifications

• Product Type: Peltier-cooled laboratory incubator
• Model: IPP55 (available in SingleDISPLAY or TwinDISPLAY versions)
• Working Temperature Range: 0°C to +70°C
• Setting Temperature Range: 0°C to +70°C
• Setting Accuracy: 0.1°C
• Volume: 53 liters

Dimensions and Weight

• Interior Dimensions (W x H x D): 400 mm x 400 mm x 330 mm
• Exterior Dimensions (W x H x D): 585 mm x 784 mm x 514 mm (plus door handle and connections)
• Net Weight: Approx. 52 kg
• Max. Loading per Shelf: 20 kg
• Max. Loading of Chamber: 80 kg
• Max. Number of Shelves: 4

Materials and Construction

• Interior Material: Stainless steel, material 1.4301 (ASTM 304), with integrated large-area heating/cooling
• Housing Material: Textured stainless steel, rear zinc-plated steel
• Door: Fully insulated stainless steel door with 2-point locking and inner glass door

Temperature Control and Monitoring

• Temperature Sensors: 1 or 2 Pt100 sensors DIN class A in 4-wire-circuit (depending on display version)
• Control Technology: Adaptive multifunctional digital PID-microprocessor controller (SingleDISPLAY or TwinDISPLAY)
• Display: High-definition TFT-color touchscreen
• Functions: SetpointWAIT, adjustable parameters, AtmoCONTROL software support (TwinDISPLAY)
• Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Ventilation and Airflow

• Heating/Cooling System: Advanced Peltier system for seamless, energy-efficient operation
• Air Circulation: Adjustable fan for optimal temperature distribution
• Fresh Air: Electronically adjustable air flap

Safety Features

• Overtemperature Protection: Adjustable electronic overtemperature monitor (TWW) and mechanical temperature limiter (TWB Class 2)
• Auto-Safety: Integrated automatic safety functions
• Alarm: Visual and acoustic alarms for temperature deviations and door open

Electrical Data

• Voltage Options: 230 V, 50/60 Hz (approx. 275 W heating / 275 W cooling) or 115 V available
• Standards Compliance: CE, EAC Eurasian Conformity

Applications

• Primary Uses: Microbiology, bacterial cultivation, cell culture, stability testing, protein crystallization, food research, pharmaceutics
