Key Features
-
Flexible Upper Basket: Open-front design accommodates up to two injector modules (e.g., A 300/3, A 301/5, A 302/3) for versatile reprocessing of laboratory glassware, optimizing chamber space.
-
Built-In Spray Arm: Integrated spray arm delivers consistent water jet coverage, enhancing cleaning performance for a wide range of laboratory items.
-
Robust Construction: Made from high-quality stainless steel with a crevice-free finish, ensuring durability, corrosion resistance, and compliance with laboratory hygiene standards.
-
EasyLoad Compatibility: Integrates with Miele’s EasyLoad system, supporting injector modules for intuitive and secure loading (loading dimensions: H 235, W 485, D 435 mm).
Glassware/Item Compatibility

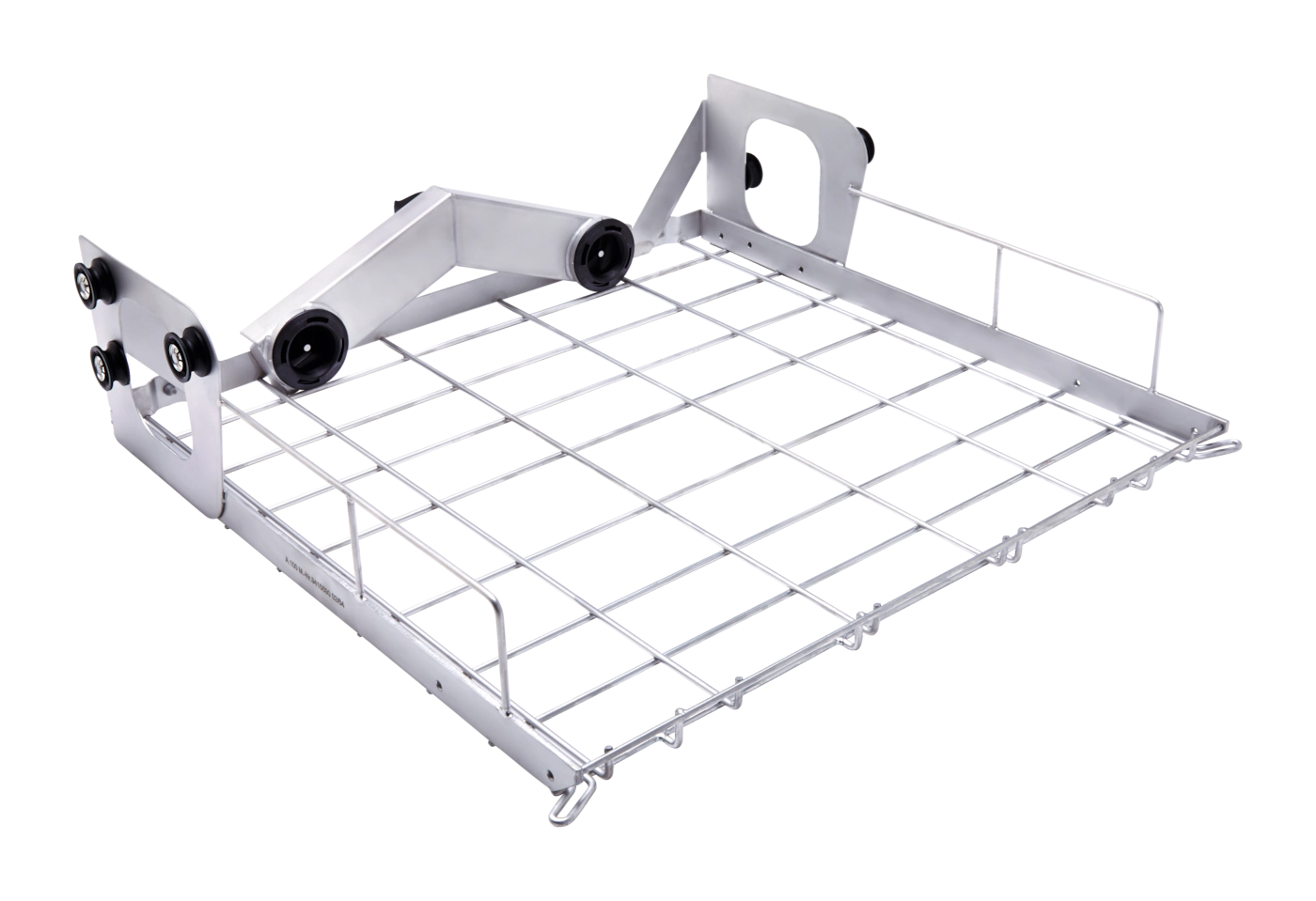

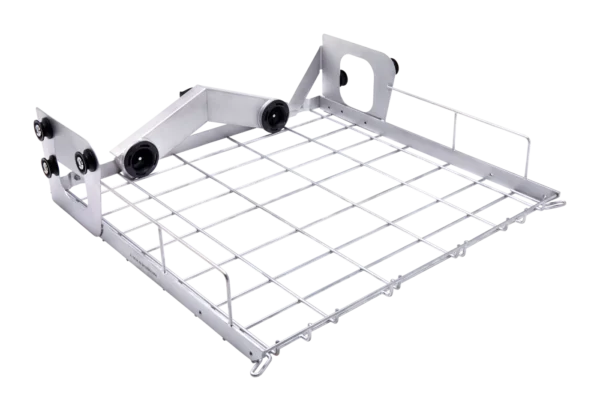

The Miele A 100 Upper Basket is designed to hold a variety of laboratory glassware when paired with compatible injector modules, ensuring thorough and gentle cleaning. Compatible items include:
-
Narrow-Necked Glassware: Erlenmeyer flasks, round flasks, and volumetric flasks (25–1000 ml) using injector modules like A 301/5 (A 842/A 843 nozzles), A 302/3 (A 844/A 845 nozzles), or A 300/3 (A 840/A 841 nozzles).
-
Measuring Cylinders: Cylinders (25–1000 ml) supported by injector modules like A 301/5, A 302/3, or A 300/3 for secure positioning and internal cleaning.
-
Pipettes and Phials: Up to 98 pipettes or phials (e.g., centrifuge tubes, test tubes) with modules like A 303 or A 304 for precise cleaning.
-
Custom Configurations: Compatible with injector modules and optional holder racks (e.g., A 860, A 861, A 862) for tailored reprocessing of delicate or complex glassware.
Note: Injector modules (e.g., A 301/5, A 302/3, A 300/3) must be purchased separately to match glassware type and size. Contact our customer service for assistance in selecting compatible accessories.
Laboratory Washer Compatibility
The Miele A 100 Upper Basket is compatible with a range of Miele Professional laboratory glassware washers, ensuring seamless integration with the following models:
-
PLW 8604: Compact laboratory washer with DI water connection, ideal for small laboratories.
-
PLW 8683 and PLW 8683 CD: High-capacity washers with thermal disinfection and optional DryPlus hot-air drying, suitable for demanding applications.
-
PLW 8693: Laboratory washer with liquid dispensing and DryPlus drying, designed for efficient reprocessing.
-
PLW 8636: Advanced washer-disinfector with feed pumps for DI water, ideal for high-throughput laboratories.
-
PLW 7111: Large-capacity SlimLine washer with telescopic runners.
-
Previous Models: Compatible with PG 8504, PG8583, PG 8583CD, PG8593, PG8536, G 7883, G 7893, G 7883 CD, G 7825, and PG 8527.
Note: Requires compatible injector modules (e.g., A 301/5, A 302/3, A 300/3). Verify compatibility with your Miele washer model and contact SiC Customer Service for configuration assistance.
