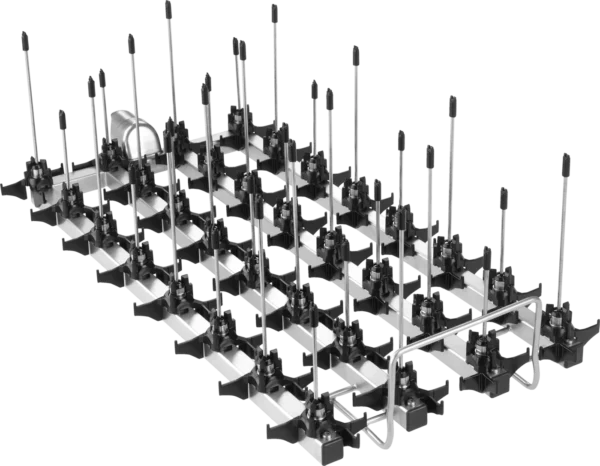

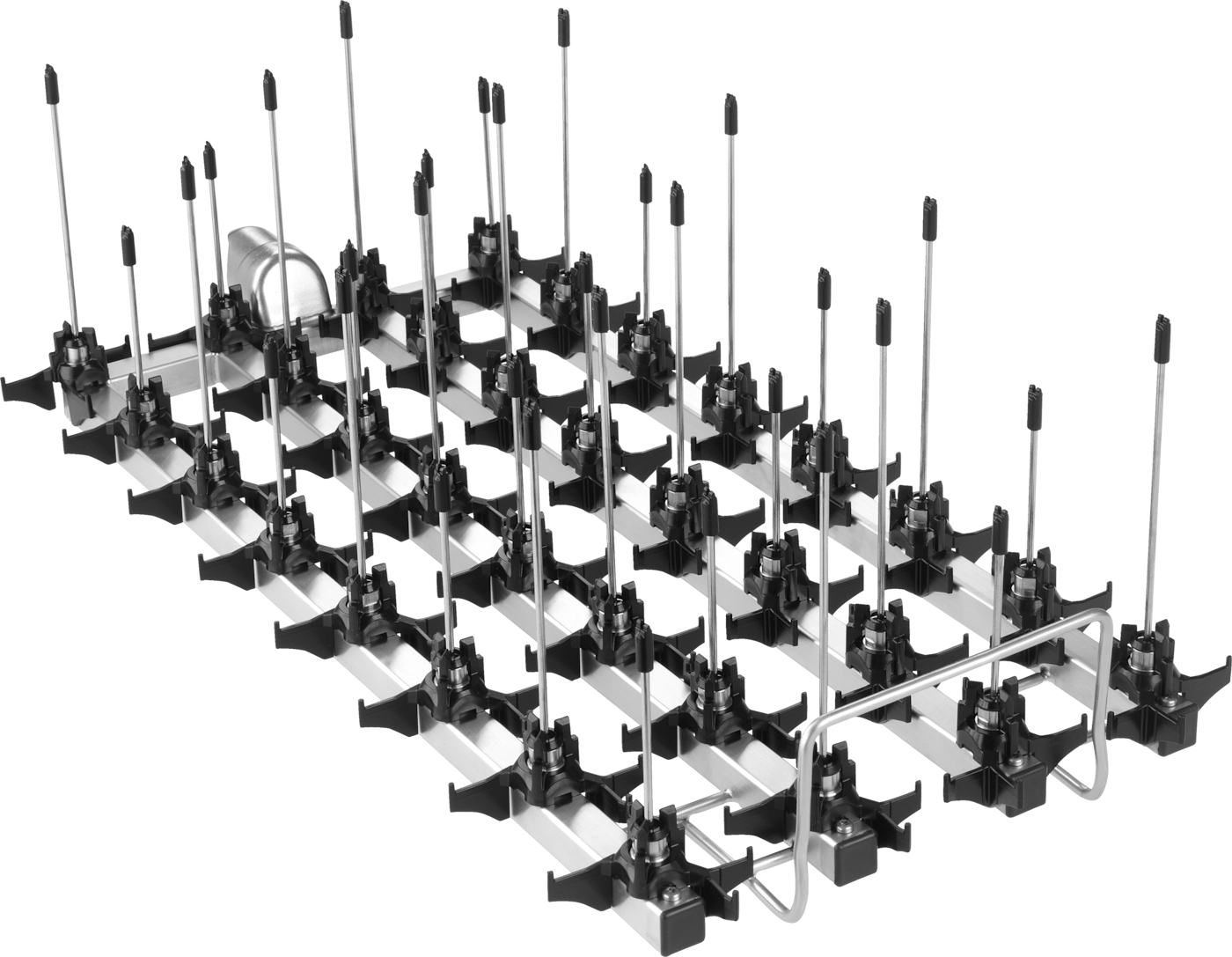

Miele Accessory A 302/3

Key Features

• High-Capacity Nozzle System: Equipped with 32 injector nozzles (16 x A 844: Ø 2.5 mm, height 80 mm; 16 x A 845: Ø 2.5 mm, height 125 mm) for precise internal cleaning of laboratory glassware, ensuring residue-free results for analytical experiments.

• EasyLoad System: Simplifies loading with a combination of nozzles and optional A 862 holder rack, eliminating height adjustments for fast and secure positioning.

• Robust Construction: Made from high-quality stainless steel with a crevice-free finish, ensuring durability, corrosion resistance, and compliance with laboratory hygiene standards.

• Optimized Cleaning: Injector nozzles deliver powerful water jets for thorough cleaning of glassware interiors, ideal for removing stubborn residues in chemical and biological applications.

• Versatile Integration: Compatible with Miele’s EasyLoad system, designed for use with A 100 upper basket or A 150 lower basket, supporting flexible reprocessing configurations

Glassware/Item Compatibility

The Miele A 302/3 Injector Module is designed to securely hold and clean a variety of laboratory glassware, ensuring thorough and gentle reprocessing. Compatible items include:

• Narrow-Necked Glassware: Erlenmeyer flasks, round flasks, and volumetric flasks (25–100 ml) using A 844 and A 845 nozzles for deep internal cleaning.

• Custom Configurations: Can be paired with the A 862 holder rack for improved protection and centering of load items.

Note: Nozzles (A 844, A 845) are included, but the A 862 holder rack must be purchased separately. Contact our customer service for assistance in selecting compatible accessories.

Laboratory Washer Compatibility

The Miele A 302/3 Injector Module is compatible with a range of Miele Professional laboratory glassware washers, ensuring seamless integration with the following models:

• PLW 8604: Compact laboratory washer with DI water connection, ideal for small laboratories.

• PLW 8683 and PLW 8683 CD: High-capacity washers with thermal disinfection and optional DryPlus hot-air drying, suitable for demanding applications.

• PLW 8693: Laboratory washer with liquid dispensing and DryPlus drying, designed for efficient reprocessing.

• PLW 8636: Advanced washer-disinfector with feed pumps for DI water, ideal for high-throughput laboratories.

• PLW 7111: Large-capacity SlimLine washer with telescopic runners.

• Previous Models: Compatible with PG 8504, PG8583, PG 8583CD, PG8593, PG8536, G 7883, G 7893, G 7883 CD, G 7825, and PG 8527 when used with EasyLoad nozzles and appropriate baskets (e.g., A 100, A 150).

Note: Requires compatible baskets (A 100 upper or A 150 lower) or mobile units (e.g., APLW 000). Verify compatibility with your Miele washer model and contact SiC Customer Service for configuration assistance.
