Key Features
-

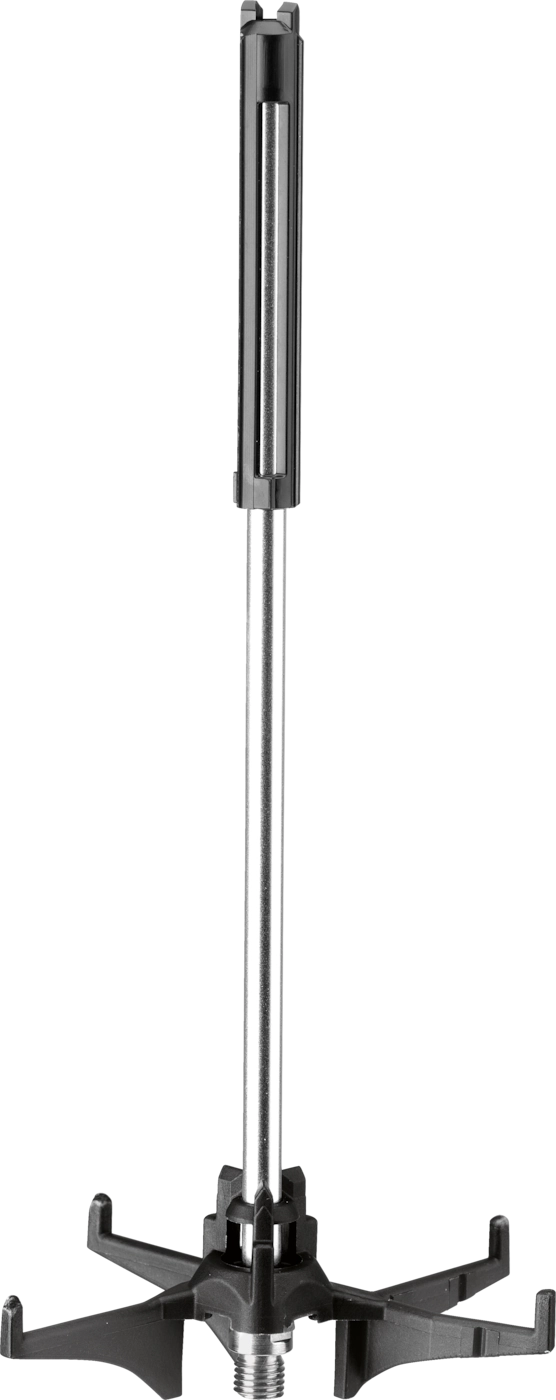

Precision Cleaning Nozzle: Stainless steel injector nozzle (Ø 6 mm, height 210 mm) designed for precise internal cleaning of laboratory glassware when connected to compatible injector modules (e.g., A 300/3).
-
Robust Construction: Made from high-quality stainless steel with a crevice-free finish, ensuring durability, corrosion resistance, and compliance with laboratory hygiene standards.
-
Optimized Water Jet Delivery: Delivers powerful, targeted water jets for thorough cleaning of glassware interiors, ideal for removing stubborn residues in chemical and biological applications.
-
EasyLoad Compatibility: Integrates with Miele’s EasyLoad system, designed for use with injector modules mounted on A 100 upper basket or A 150 lower basket, ensuring secure and efficient reprocessing.
-
Compact Design: Slim profile (Ø 6 mm, H 210 mm) allows for high-density configurations within injector modules, maximizing load capacity for taller glassware.
-
Module-Dependent Operation: Requires connection to a compatible injector module (e.g., A 300/3) for operation, ensuring seamless integration with Miele’s reprocessing systems.
Glassware/Item Compatibility
The Miele A 841 Injector Nozzle, when connected to a compatible injector module (e.g., A 300/3), is designed to clean a variety of laboratory glassware, ensuring thorough and gentle reprocessing. Compatible items include:
-
Narrow-Necked Glassware: Erlenmeyer flasks, round flasks, and volumetric flasks (250–1000 ml) for deep internal cleaning using the nozzle’s targeted water jets, suitable for taller glassware due to 210 mm height.
-
Measuring Cylinders: Cylinders (250–1000 ml), supported by the nozzle’s height and diameter for effective cleaning.
-
Custom Configurations: Can be used with optional holder racks (e.g., A 860 for A 300/3) for improved positioning and protection of glassware during reprocessing.
-
Limitations: Not suitable for small items like pipettes or phials, or wide-necked glassware (e.g., beakers) requiring spring hook inserts (e.g., E 104/1, E 106). Requires an injector module for operation.
Note: Must be used with a compatible injector module (e.g., A 300/3) and baskets (e.g., A 100, A 150). Contact our customer service for assistance in selecting compatible accessories.
Laboratory Washer Compatibility
The Miele A 841 Injector Nozzle, when connected to a compatible injector module, is compatible with a range of Miele Professional laboratory glassware washers, ensuring seamless integration with the following models:
-
PLW 8604: Compact laboratory washer with DI water connection, ideal for small laboratories.
-
PLW 8683 and PLW 8683 CD: High-capacity washers with thermal disinfection and optional DryPlus hot-air drying, suitable for demanding applications.
-
PLW 8693: Laboratory washer with liquid dispensing and DryPlus drying, designed for efficient reprocessing.
-
PLW 8636: Advanced washer-disinfector with feed pumps for DI water, ideal for high-throughput laboratories.
-
PLW 7111: Large-capacity SlimLine washer with telescopic runners.
-
Previous Models: Compatible with PG 8504, PG8583, PG 8583CD, PG8593, PG8536, G 7883, G 7893, G 7883 CD, G 7825, and PG 8527 when used with EasyLoad-compatible injector modules and baskets (e.g., A 100, A 150).
Note: Requires a compatible injector module (e.g., A 300/3) and baskets (A 100 upper or A 150 lower) or mobile units (e.g., APLW 000). Verify compatibility with your Miele washer model and contact SiC Customer Service for configuration assistance.
