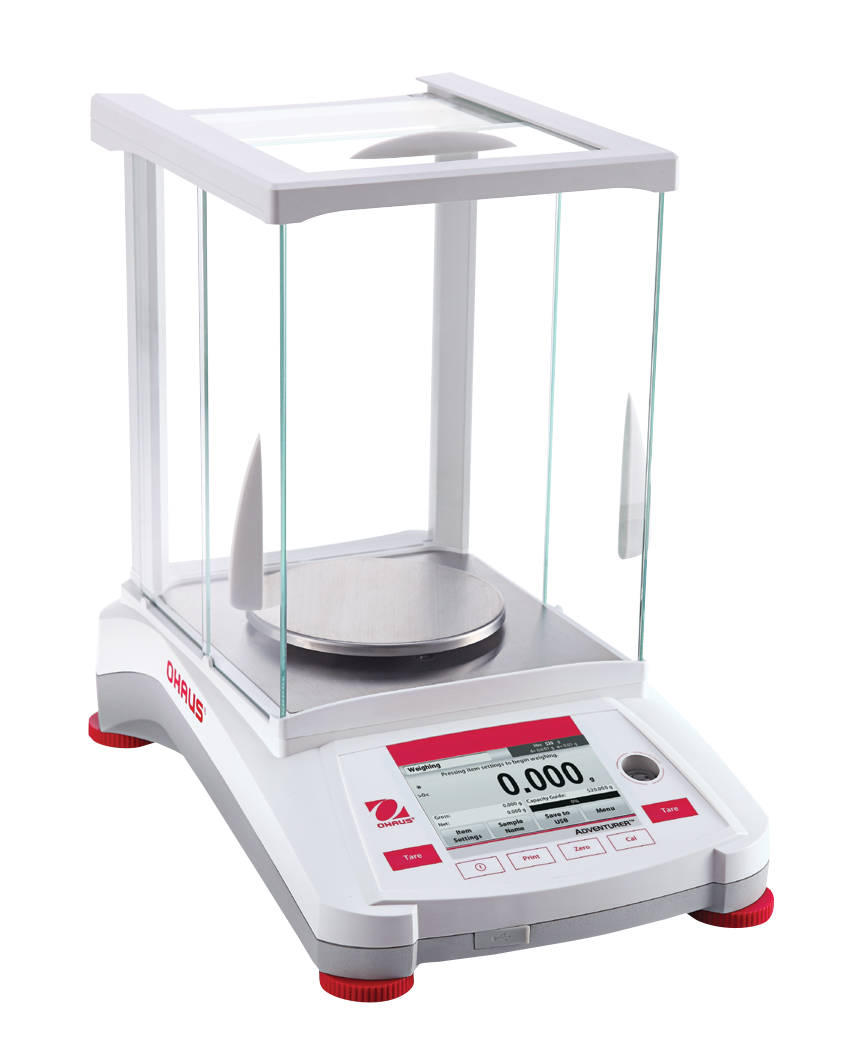

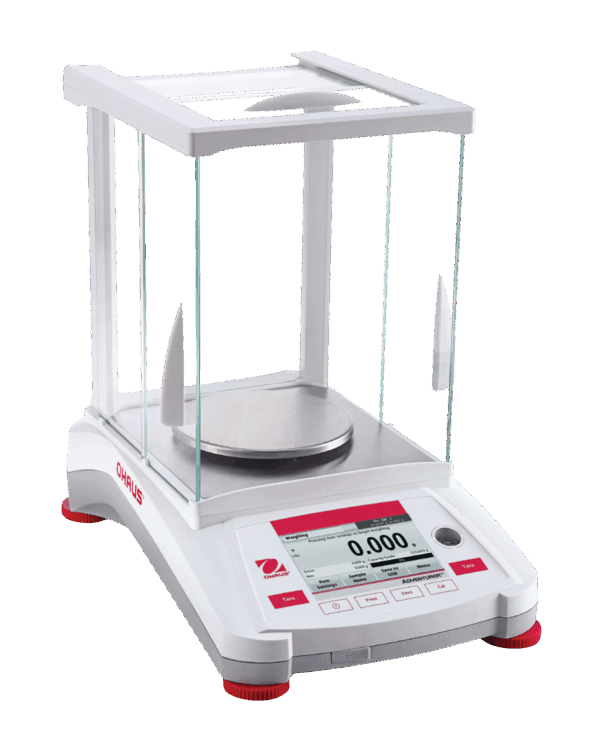

Ohaus Adventurer™ Precision Balance AX523

Discover the Ohaus Adventurer™ Precision Balance AX523, a high-precision laboratory balance engineered for accurate weighing in research, industrial, and analytical labs. This precision balance offers a 520 g capacity with 1 mg readability, delivering reliable accuracy for diverse applications. Featuring a full-color touchscreen, AutoCal™ internal calibration, and robust connectivity options, the AX523 is the ideal analytical weighing solution for laboratories seeking performance and efficiency.

Key Features

• High-Precision Weighing: Offers a 520 g capacity with 1 mg readability and fast stabilization times (≤2 seconds), ensuring accurate measurements for critical lab tasks.

• AutoCal™ Internal Calibration: Fully automatic internal calibration adjusts for environmental changes, maintaining consistent accuracy without manual intervention.

• Intuitive Touchscreen Interface: Full-color 4.3-inch VGA graphic touchscreen with user-controlled brightness, supporting seamless operation and GLP/GMP compliance.

• Advanced Connectivity: Includes RS232, USB Host, and USB Device ports for efficient data transfer, with real-time clock and data output for traceability.

• Durable Design: Features a metal base, ABS top housing, stainless steel pan, and glass draftshield with two-piece sliding doors, ensuring durability and protection.

Applications

• Research Laboratories: Perfect for analytical chemistry, material science, and formulation, supporting weighing, parts counting, percent weighing, and density determination.

• Industrial Applications: Ideal for quality control tasks requiring high-precision weighing, such as check weighing, filling, and totalization in industrial labs.

• Educational Settings: Suitable for university and school laboratories, providing reliable precision for teaching and research applications.

• Maximum Capacity: 520 g

• Readability: 1 mg

• Pan Size: 5.1 in (130 mm)

• Internal Calibration: AutoCal™ – Automatic

• Draftshield: Included

• Auxiliary Display Model: Available as an Accessory

• Battery Life: Not Applicable

• Communication: USB; RS232 (Included); USB Host

• Dimensions: 13.93 in x 13.39 in x 9.05 in (354 mm x 340 mm x 230 mm) (LxHxW)

• Display: Full-Color 4.3 in Touchscreen WQVGA

• In-Use Cover: Included

• Legal for Trade: Not Applicable

• Linearity ±: 0.002 g

• Minimum Weight (USP, 0.1%, typical): 2 g

• Net Weight: 12.8 lb (5.8 kg)

• Pan Construction: Stainless Steel

• Power: AC Adapter (Included)

• Repeatability, typical: 1 mg

• Stabilization Time: 2 s

• Tare Range: To capacity by subtraction

• Units of Measurement: Singapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce

• Working Environment: 50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing)
