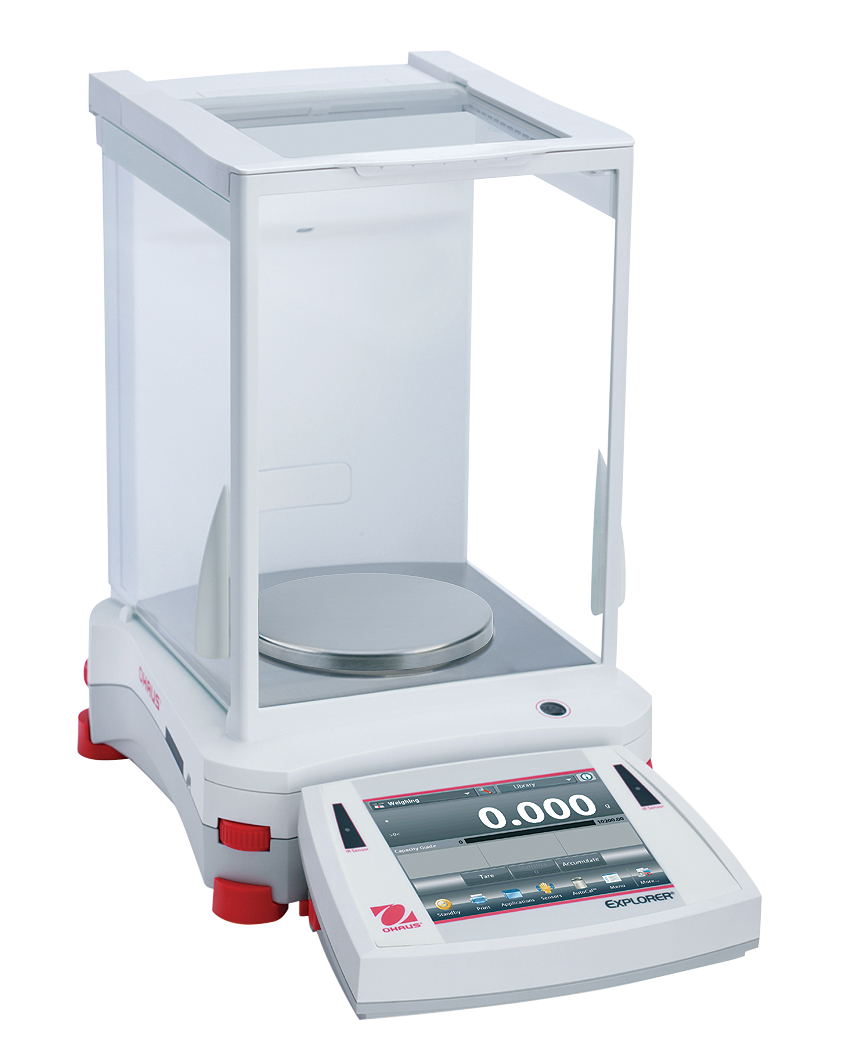

Ohaus Explorer™ Precision Balance EX223

Discover the Ohaus Explorer™ Precision Balance EX223, a high-precision laboratory balance engineered for accurate weighing in research, industrial, and analytical labs. This precision balance offers a 220 g capacity with 1 mg readability, delivering reliable accuracy for diverse applications. Featuring a full-color VGA touchscreen, AutoCal™ internal calibration, and robust connectivity options, the EX223 is the ideal analytical weighing solution for laboratories seeking precision and efficiency.

Key Features

• High-Precision Weighing: Offers a 220 g capacity with 1 mg readability and fast stabilization times (≤1 second), ensuring accurate measurements for critical lab tasks.

• AutoCal™ Internal Calibration: Fully automatic internal calibration adjusts for environmental changes, maintaining consistent accuracy without manual intervention.

• Intuitive Touchscreen Interface: Full-color 5.7-inch VGA graphic display with a 4-wire resistive touchscreen, QWERTY keyboard, and numeric keypad for seamless data input and GLP/GMP compliance.

• Advanced Connectivity: Equipped with USB, RS232, and optional Ethernet ports, plus a SAVE to USB function for efficient data transfer and management.

• Durable Design: Features a metal base, ABS top housing, stainless steel pan, and glass draftshield with a flip-top door, ensuring durability and protection in lab environments.

Applications

• Research Laboratories: Perfect for analytical chemistry, material science, and formulation, supporting weighing, parts counting, percent weighing, and density determination.

• Industrial Applications: Ideal for quality control tasks requiring high-precision weighing, such as check weighing, filling, and totalization in industrial labs.

• Educational Settings: Suitable for university and school laboratories, providing reliable precision for teaching and research applications.

• Maximum Capacity: 220 g

• Readability: 1 mg

• Pan Size: 5.1 in (130 mm)

• Internal Calibration: AutoCal™ – Automatic

• Draftshield: Included

• Auto Door: Not Applicable

• Auxiliary Display Model: Available as an Accessory

• Battery Life: Not Applicable

• Communication: RS232 (Included); USB (Included); Ethernet (Available as an Accessory)

• Dimensions: 15.5 in x 13.8 in x 9.1 in (393 mm x 350 mm x 230 mm) (LxHxW)

• Display: Full-color 5.7 in VGA, touch screen

• In-Use Cover: Included

• Legal for Trade: Not Applicable

• Linearity ±: 0.002 g

• Minimum Weight (USP, 0.1%, typical): 1.6 g

• Net Weight: 15.2 lb (6.9 kg)

• Pan Construction: Stainless Steel

• Power: AC Adapter (Included)

• Repeatability, typical: 0.001 g

• Stabilization Time: 1 s

• Tare Range: To capacity by subtraction

• Units of Measurement: Singapore Tael; Ounce Troy; Pennyweight; Grain; Kilogram; Tical; Custom; Milligram; Momme; Newton; Baht; Taiwan Tael; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Carat; Ounce

• Working Environment: 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
