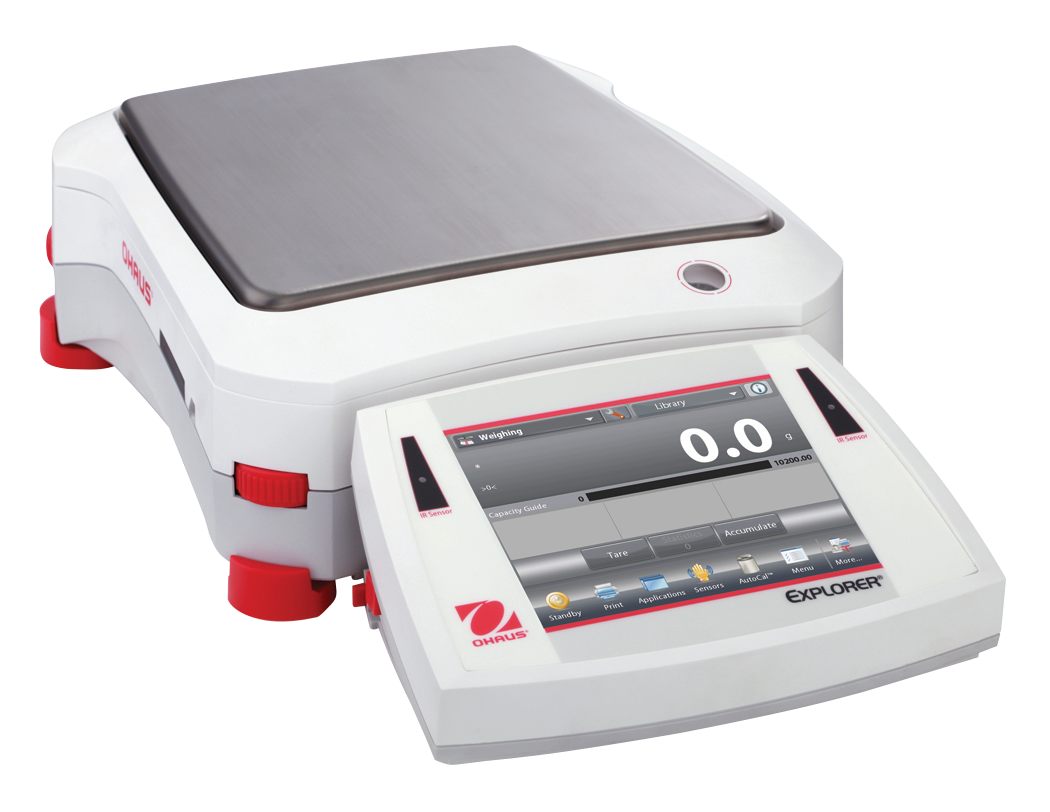

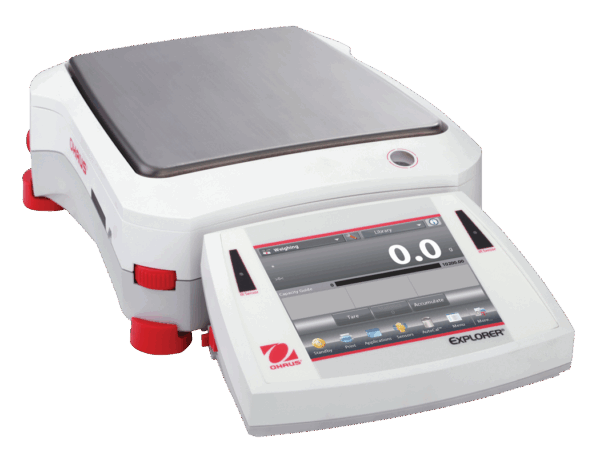

Ohaus Explorer™ Precision Balance EX6201

SKU: 83021361

Brand

Ohaus

Flagship Balance from OHAUS


£2,910.00

About Ohaus Explorer™ Precision Balance EX6201

Discover the Ohaus Explorer™ Precision Balance EX6201, a high-capacity laboratory balance engineered for precise weighing in research, industrial, and analytical labs. This precision balance offers a 6,200 g capacity with 0.1 g readability, delivering reliable accuracy for large-scale applications. Featuring a full-color VGA touchscreen, AutoCal™ internal calibration, and robust connectivity options, the EX6201 is the ideal high-capacity weighing solution for laboratories seeking precision and efficiency.

Key Features

  • High-Capacity Precision Weighing: Offers a 6,200 g capacity with 0.1 g readability and fast stabilization times (≤1 second), ensuring accurate measurements for large samples.

  • AutoCal™ Internal Calibration: Fully automatic internal calibration adjusts for environmental changes, maintaining consistent accuracy without manual intervention.

  • Intuitive Touchscreen Interface: Full-color 5.7-inch VGA graphic display with a 4-wire resistive touchscreen, QWERTY keyboard, and numeric keypad for seamless data input and GLP/GMP compliance.

  • Advanced Connectivity: Equipped with USB, RS232, and optional Ethernet ports, plus a SAVE to USB function for efficient data transfer and management.

  • Durable Design: Features a metal base, ABS top housing, and stainless steel pan, ensuring durability and reliability in demanding lab environments.

Applications

  • Research Laboratories: Ideal for material science, formulation, and density determination, supporting weighing, parts counting, percent weighing, and check weighing.

  • Industrial Applications: Perfect for quality control tasks requiring high-capacity weighing, such as filling, totalization, and ingredient costing in industrial labs.

  • Educational Settings: Suitable for university and school laboratories, providing reliable precision for teaching and research applications with large sample sizes.

Attributes

  • Maximum Capacity: 6,200 g

  • Readability: 0.1 g

  • Pan Size: 7.5 in x 8 in (190 mm x 200 mm)

  • Internal Calibration: AutoCal™ – Automatic

  • Draftshield: —

  • Auto Door: Not Applicable

  • Auxiliary Display Model: Available as an Accessory

  • Battery Life: Not Applicable

  • Communication: RS232 (Included); USB (Included); Ethernet (Available as an Accessory)

  • Dimensions: 15.5 in x 3.9 in x 9.1 in (393 mm x 98 mm x 230 mm) (LxHxW)

  • Display: Full-color 5.7 in VGA, touch screen

  • In-Use Cover: Included

  • Legal for Trade: Not Applicable

  • Linearity ±: 0.2 g

  • Minimum Weight (USP, 0.1%, typical): 160 g

  • Net Weight: 11 lb (5 kg)

  • Pan Construction: Stainless Steel

  • Power: AC Adapter (Included)

  • Repeatability, typical: 0.1 g

  • Stabilization Time: 1 s

  • Tare Range: To capacity by subtraction

  • Units of Measurement: Singapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Kilogram;  Tical;  Custom;  Milligram;  Momme;  Newton;  Baht;  Taiwan Tael;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce

  • Working Environment: 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)

Downloads


Explorer_EX_Datasheet_US 80774580_N
