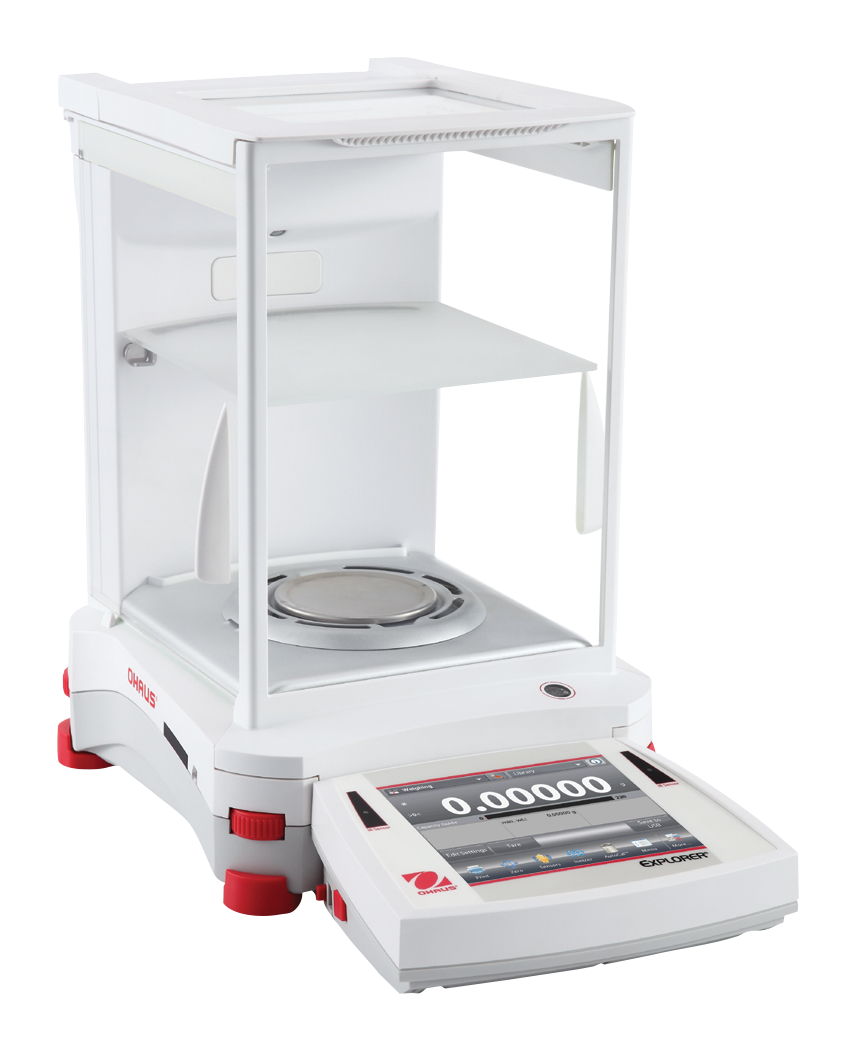

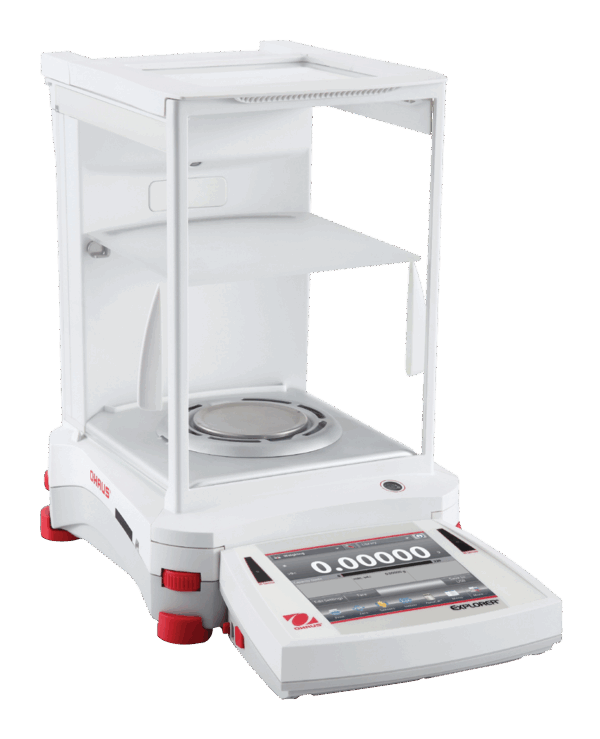

Ohaus Explorer™ Semi-Micro Balance EX225D

Discover the Ohaus Explorer™ Semi-Micro Balance EX225D, a high-precision laboratory balance engineered for accurate weighing in research, pharmaceutical, and analytical labs. This semi-micro balance offers dual-range capacities of 120 g (0.01 mg readability) and 220 g (0.1 mg readability), delivering unmatched accuracy for critical applications. Featuring a full-color VGA touchscreen, AutoCal™ internal calibration, and robust connectivity options, the EX225D is the ultimate precision weighing solution for sophisticated laboratories, ensuring reliable and compliant results.

Key Features

• High-Precision Weighing: Dual-range capacities of 120 g (0.01 mg readability) and 220 g (0.1 mg readability), with fast stabilization times (≤8 seconds) for accurate measurements to the hundred-thousandth.

• AutoCal™ Internal Calibration: Fully automatic internal calibration adjusts for environmental changes, ensuring consistent accuracy without manual intervention.

• Intuitive Touchscreen Interface: Full-color 5.7-inch VGA graphic display with a 4-wire resistive touchscreen, QWERTY keyboard, and numeric keypad for seamless data input and GLP/GMP compliance.

• Advanced Connectivity: Equipped with USB, RS232, and optional Ethernet ports, plus a SAVE to USB function for efficient data transfer and management.

• Robust Anti-Static Design: Features a metal base, stainless steel pan, and anti-static glass draftshield with a flip-top door, plus an optional built-in ionizer to eliminate static interference.

Applications

• Research Laboratories: Perfect for analytical chemistry, pharmaceutical research, and material science, supporting formulation, density determination, and statistical quality control (SQC).

• Pharmaceutical Applications: Ideal for pipette adjustment, differential weighing, and totalization, ensuring compliance with strict regulatory standards.

• Quality Control Labs: Suitable for parts counting, percent weighing, and check weighing, delivering high-accuracy measurements for industrial and academic settings.

• Maximum Capacity: 120 g/220 g

• Readability: 0.01 mg; 0.1 mg

• Pan Size: 3.14 in (80 mm)

• Internal Calibration: AutoCal™ – Automatic

• Draftshield: Included

• Auto Door: Not Applicable

• Auxiliary Display Model: Available as an Accessory

• Battery Life: Not Applicable

• Communication: RS232 (Included); USB (Included); Ethernet (Available as an Accessory)

• Dimensions: 15.5 in x 13.8 in x 9.1 in (393 mm x 350 mm x 230 mm) (LxHxW)

• Display: Full-color 5.7 in VGA, touch screen

• In-Use Cover: Included

• Legal for Trade: Not Applicable

• Linearity ±: 0.1 mg

• Minimum Weight (USP, 0.1%, typical): 20 mg

• Net Weight: 7 kg

• Pan Construction: Stainless Steel

• Power: AC Adapter (Included)

• Stabilization Time: 8 s

• Tare Range: To capacity by subtraction

• Units of Measurement: Ounce Troy; Pennyweight; Momme; Gram; Kilogram; Grain; Tola; Tical; Mesghal; Carat; Ounce; Custom

• Working Environment: 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
