Ohaus Frontier™ 5000 Series Multi Pro Centrifuge FC5916R

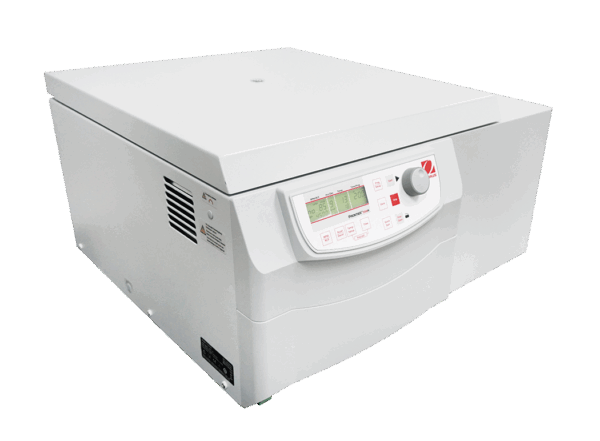

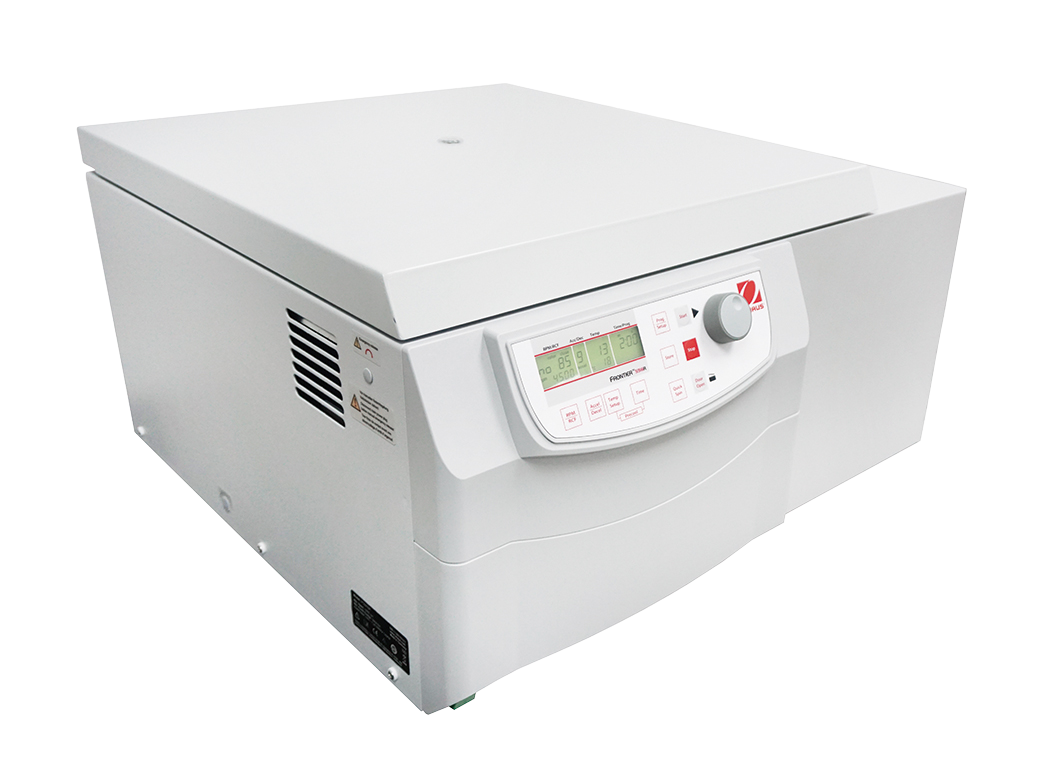

The Ohaus Frontier™ 5000 Series Multi Pro Centrifuge FC5916R is a high-performance, refrigerated centrifuge designed for versatile use in research, industrial, and clinical laboratories. Engineered with German precision, this benchtop centrifuge offers capacities up to 4 x 750 ml, high-speed performance, and automatic rotor identification with precise temperature control. Featuring a backlit LCD display, chemical-resistant stainless steel construction, and advanced safety features, the FC5916R delivers reliable and customizable centrifugation, making it ideal for demanding laboratory applications requiring cooling.

Key Features

• Refrigerated Centrifugation: Maintains precise temperature control from -20°C to 40°C with a pre-cooling program and sample temperature indication, ideal for sensitive samples.

• High-Speed Performance: Achieves speeds up to 16,000 rpm with a maximum relative centrifugal force (RCF) of 26,331 g, supporting a wide range of applications.

• Automatic Rotor Recognition: Automatically identifies up to 14 optional rotors and 75 accessories, enabling seamless operation and enhanced sample processing throughput.

• Intuitive Backlit LCD Display: Provides a user-friendly interface for easy parameter settings, program storage (up to 99 programs), and quick switching between applications, even with gloves on.

• Advanced Safety Features: Includes automatic over-speed protection, active imbalance detection with rotor-specific tolerances, and a motorized lid lock for enhanced operator safety.

Applications

• Research Laboratories: Perfect for life sciences, biotechnology, and chemical research, enabling centrifugal separation of DNA, proteins, and cell cultures with precise temperature control.

• Clinical Laboratories: Ideal for processing blood, urine, and other biological samples, supporting diagnostic workflows with high-speed and high-capacity rotors.

• Industrial Applications: Suitable for quality control and material testing in pharmaceutical and industrial settings, accommodating various tube sizes and sample volumes.

• Dimensions (LxHxW): 670 mm x 390 mm x 730 mm, designed for benchtop installation in laboratory spaces.

• Electrical Connection: 230V, 50/60Hz, with a power consumption of 1.75 kW, adaptable to standard laboratory power requirements.

• Net Weight: 260 lb (118 kg), ensuring stability during high-speed operation.

• Rotor Compatibility: Supports multiple rotors, including Angle 4 x 85ml RB ID Hi; Angle 12 x 15 ml RB/FA ID; Angle 6 x 250 ml FB ID; Angle 24 x 1.5 / 2.0 ml ID Sealable; Angle 6 x 50 ml RB ID Hi; Swing out 4 x 100 ml ID; Angle 12 x 1.5 / 2.0 ml ID; Angle 4 x 8-w PCR Strip ID; Angle 44 x 1.5 / 2.0 ml ID; Swing out 4x750ml ID Sealable; Swing out 4 x 100 ml ID Sealable; Angle 6 x 85 ml RB ID; Angle 24 x 1.5 / 2.0 ml ID; Rotor Angle 4x500ml ID; Angle 6 x 85 ml RB ID Hi; Angle 30 x 15 ml RB/FA ID; Angle 30 x 1.5 / 2.0 ml ID Sealable; Angle 10 x 50 ml FA ID; Angle 64 x 0.5 ml ID; Angle 20 x 10 ml RB ID Hi; Angle 6 x 50 ml RB/FA ID; Swing out 2 x 3MTP ID.

• Safety Certification: CE, FCC certified.
