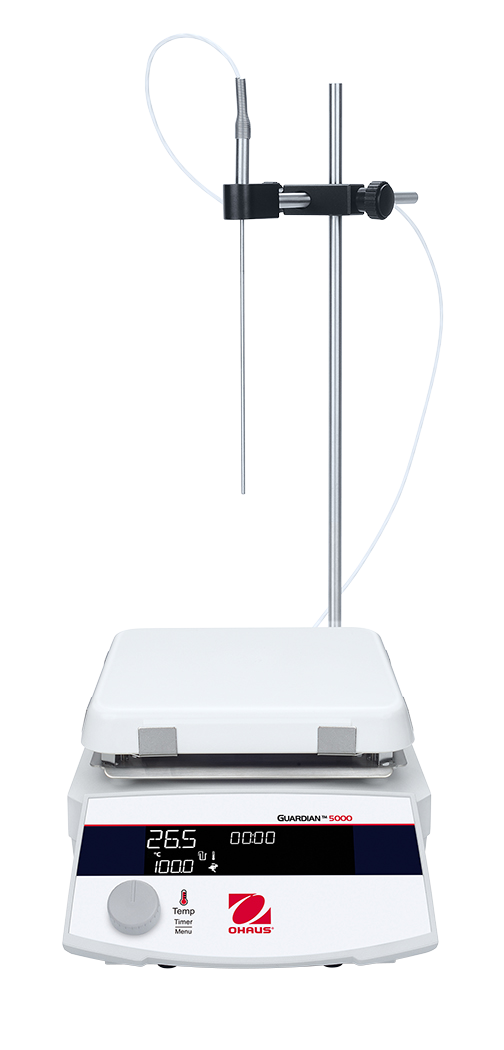

Ohaus Guardian™ 5000 Hotplate Stirrer e-G52HP07C-K1

Discover the Ohaus Guardian™ 5000 Hotplate e-G52HP07C-K1, a high-performance laboratory hotplate designed for precise and safe heating in research, academic, and industrial labs. This robust unit offers a 7 x 7 inch ceramic plate, heating up to 550°C with three temperature control modes for versatile applications. Featuring a backlit LCD display, SafetyHeat™ and SmartHeat™ technology, and a durable metal housing, the e-G52HP07C-K1 is the ideal solution for labs seeking reliable and efficient sample preparation. The K1 kit includes a temperature probe and probe holder for enhanced precision.

Key Features

• High-Performance Heating: Heats up to 550°C with three temperature control modes (quick, precise, and stable), ensuring flexibility for diverse lab tasks.

• Advanced Safety Features: SafetyHeat™, SmartHeat™, and Run Dry Protection systems, combined with a hot top indicator, prevent overheating and ensure user safety.

• Intuitive LCD Display: Backlit LCD with white characters, green heating indicators, and a prominent yellow hot top indicator for clear monitoring and operation.

• Durable Construction: Robust full metal housing with IP32 protection and a chemical-resistant ceramic plate for easy cleaning and durability.

• Smart Connectivity and Kit Inclusion: Includes an RS232 port, temperature probe, and probe holder for precise control and data logging, with optional Ethernet and USB accessories.

Applications

• Research Laboratories: Ideal for temperature-sensitive chemistry, solution sterilization, and endothermic reactions in analytical and life sciences.

• Academic Settings: Perfect for university and school laboratories, supporting heat fixation, pH optimization, and media preparation for teaching and experiments.

• Industrial Applications: Suitable for sample preparation, reagent dissolving, and boiling in quality control and industrial labs.

• Function: Heating

• Plate Construction: Ceramic

• Plate Size: 7 in x 7 in (18 cm x 18 cm)

• Temperature Range: Ambient + 5°C – 550°C

• Control: Digital

• Power Consumption: 1,050 W

• Dimensions: 12.94 in x 4.56 in x 8.69 in (329 mm x 116 mm x 221 mm) (LxHxW)

• Display: High contrast brilliant LCD display

• Communication: Ethernet (Available as an Accessory); USB (Available as an Accessory); RS232

• Power: 220V-240V~ 7A 50/60Hz

• Net Weight: 8.6 lb (3.9 kg)

• Safety Certification: CE; TUV

• Temperature Stability: +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C

• Temperature Probe: Pt1000

• Calibration: Temperature Calibration 3 Plate/3 Probe

• Timer: 1 minute – 99 hours, 59 minutes

• Working Environment: 5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing)
