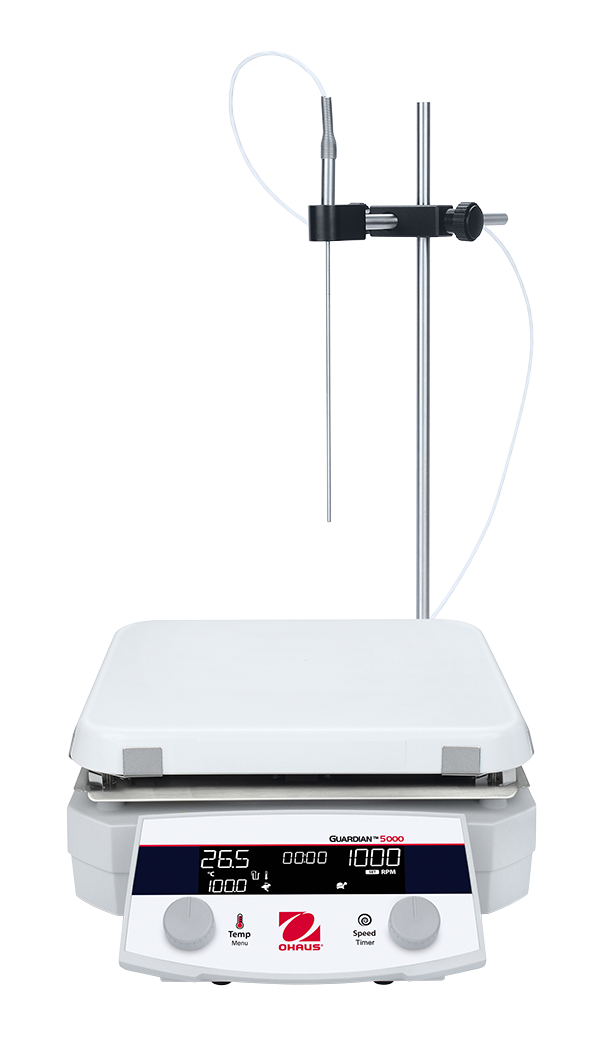

Ohaus Guardian™ 5000 Hotplate Stirrer e-G52HS10C-K1

Discover the Ohaus Guardian™ 5000 Hotplate Stirrer e-G52HS10C-K1, a high-performance laboratory hotplate stirrer engineered for precise heating and stirring in research, academic, and industrial labs. This versatile unit offers a 22 L capacity with a 10 x 10 inch ceramic plate, heating up to 500°C and stirring from 50 to 1,800 rpm. Featuring a backlit LCD display, SafetyHeat™ and SmartHeat™ technology, and a temperature probe kit for enhanced precision, the e-G52HS10C-K1 is the ideal solution for labs seeking reliable and safe sample preparation.

Key Features

• Powerful Heating and Stirring: Heats up to 500°C and stirs from 50 to 1,800 rpm with a 22 L capacity, with three temperature control modes for precise and versatile applications.

• Advanced Safety Features: SafetyHeat™, SmartHeat™, and Run Dry Protection systems, combined with a hot top indicator, prevent overheating and ensure user safety.

• Intuitive LCD Display: High-contrast backlit LCD with white characters, green heating/stirring indicators, and a prominent yellow hot top indicator for clear monitoring.

• Durable Construction: Robust full metal housing with IP32 protection and a chemical-resistant ceramic plate for easy cleaning and long-term durability.

• Smart Connectivity and Kit Inclusion: Includes an RS232 port, temperature probe, and probe holder for precise control and data logging, with optional Ethernet and USB accessories.

Applications

• Research Laboratories: Ideal for temperature-sensitive chemistry, solution sterilization, and endothermic reactions in analytical and life sciences.

• Academic Settings: Perfect for university and school laboratories, supporting heat fixation, pH optimization, and media preparation for teaching and experiments.

• Industrial Applications: Suitable for sample preparation, reagent dissolving, and boiling in quality control and industrial labs.

• Function: Heating and Stirring

• Capacity: 22 L

• Plate Construction: Ceramic

• Plate Size: 10 in x 10 in (26 cm x 26 cm)

• Temperature Range: Ambient + 5°C – 500°C

• Speed Range: 50 rpm – 1,800 rpm

• Control: Digital

• Power Consumption: 1,447 W

• Dimensions: 15.84 in x 4.65 in x 11.28 in (402 mm x 118 mm x 287 mm) (LxHxW)

• Display: High contrast brilliant LCD display

• Power: 220V-240V~ 10A 50/60Hz

• Net Weight: 14.8 lb (6.7 kg)

• Safety Certification: CE; TUV

• Speed Stability: +/-2%

• Temperature Stability: +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C

• Calibration: Temperature Calibration 3 Plate/3 Probe

• Temperature Probe: Pt1000

• Timer: 1 minute – 99 hours, 59 minutes

• Working Environment: 5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing)
