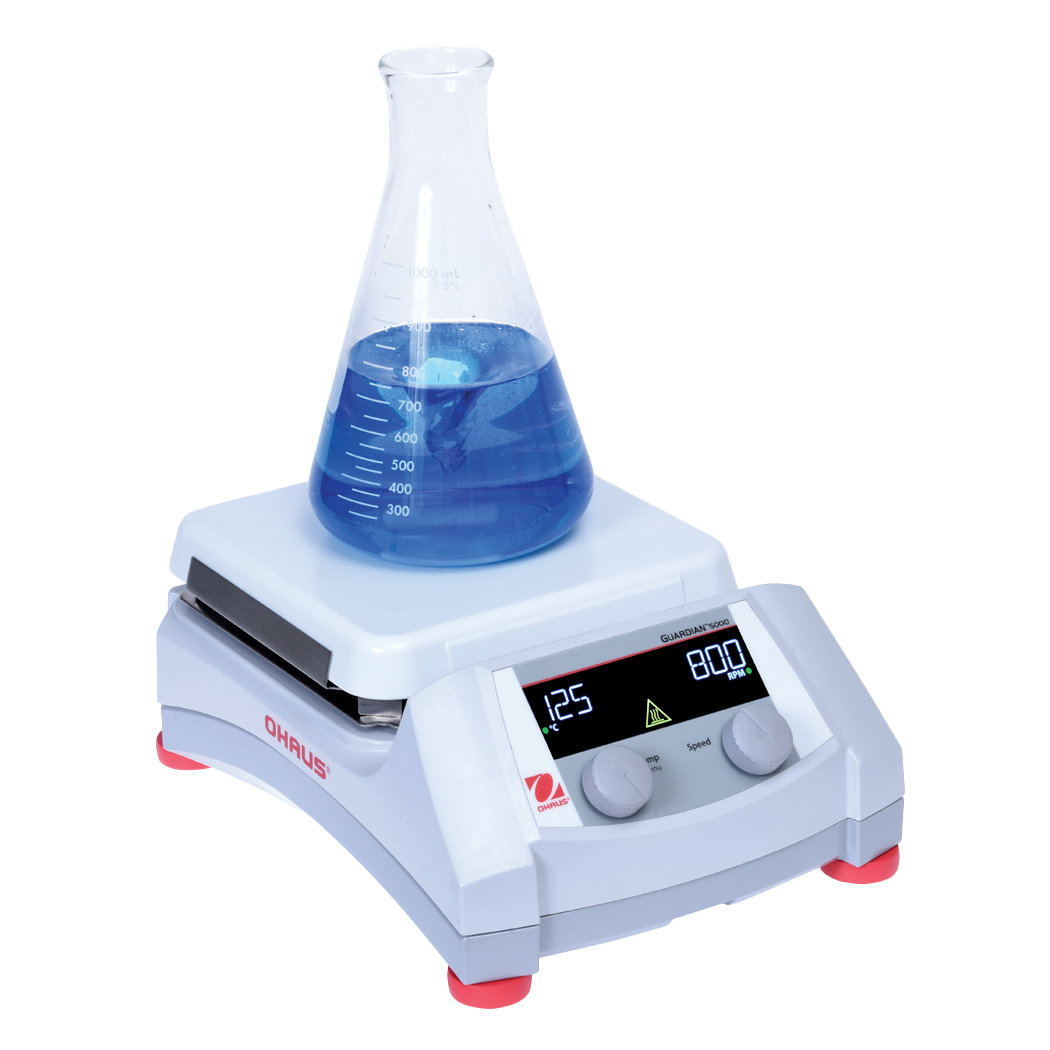

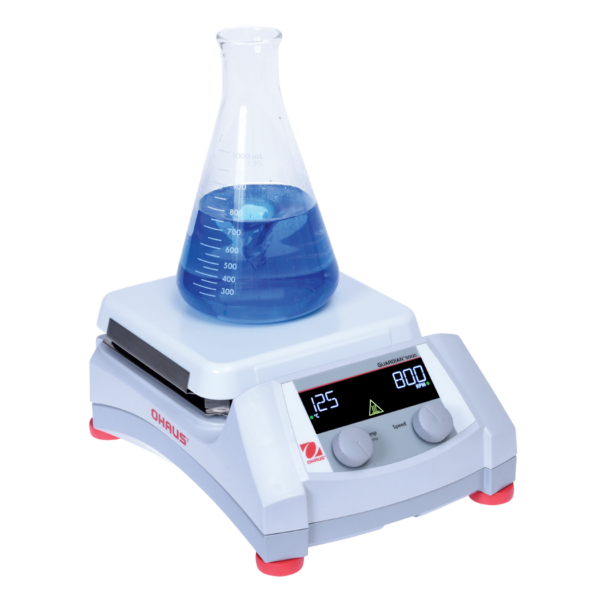

Ohaus Guardian™ 5000 Hotplate Stirrer e-G52HSRDA

Discover the Ohaus Guardian™ 5000 Hotplate Stirrer e-G52HSRDA, a high-performance laboratory hotplate stirrer engineered for precise heating and stirring in research, academic, and industrial labs. This versatile unit offers a 20 L capacity with a 5.3-inch ceramic-coated aluminium round plate, heating up to 360°C and stirring from 50 to 1,800 rpm. Featuring a backlit LCD display, SafetyHeat™ and SmartHeat™ technology, and a durable metal housing, the e-G52HSRDA is the ideal solution for labs seeking reliable and safe sample preparation.

Key Features

• Powerful Heating and Stirring: Heats up to 360°C and stirs from 50 to 1,800 rpm with a 20 L capacity, with three temperature control modes for precise and versatile applications.

• Advanced Safety Features: SafetyHeat™, SmartHeat™, and Run Dry Protection systems, combined with a hot top indicator, prevent overheating and ensure user safety.

• Intuitive LCD Display: High-contrast backlit LCD with white characters, green heating/stirring indicators, and a prominent yellow hot top indicator for clear monitoring.

• Durable Construction: Robust full metal housing with IP32 protection and a chemical-resistant ceramic-coated aluminium plate for easy cleaning and durability.

• Smart Connectivity: Includes an RS232 port for data logging and remote control, with optional Ethernet and USB accessories for enhanced connectivity.

Applications

• Research Laboratories: Ideal for temperature-sensitive chemistry, solution sterilization, and endothermic reactions in analytical and life sciences.

• Academic Settings: Perfect for university and school laboratories, supporting heat fixation, pH optimization, and media preparation for teaching and experiments.

• Industrial Applications: Suitable for sample preparation, reagent dissolving, and boiling in quality control and industrial labs.

• Function: Heating and Stirring

• Capacity: 20 L

• Plate Construction: Ceramic Coated Aluminium

• Plate Size: 5.3 in (13.5 cm)

• Temperature Range: Ambient + 5°C – 360°C

• Speed Range: 50 rpm – 1,800 rpm

• Control: Digital

• Dimensions: 10.21 in x 4.26 in x 6.87 in (259 mm x 108 mm x 175 mm) (LxHxW)

• Display: High contrast brilliant LCD display

• Power: 220V-240V~ 4A 50/60Hz

• Net Weight: 5.7 lb (2.6 kg)

• Safety Certification: CE; TUV

• Speed Stability: +/-2%

• Temperature Probe: Pt100; Pt1000; Available as an Accessory

• Temperature Stability: +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C

• Calibration: Temperature Calibration 3 Plate/3 Probe

• Timer: 1 minute – 99 hours, 59 minutes

• Working Environment: 5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing)
