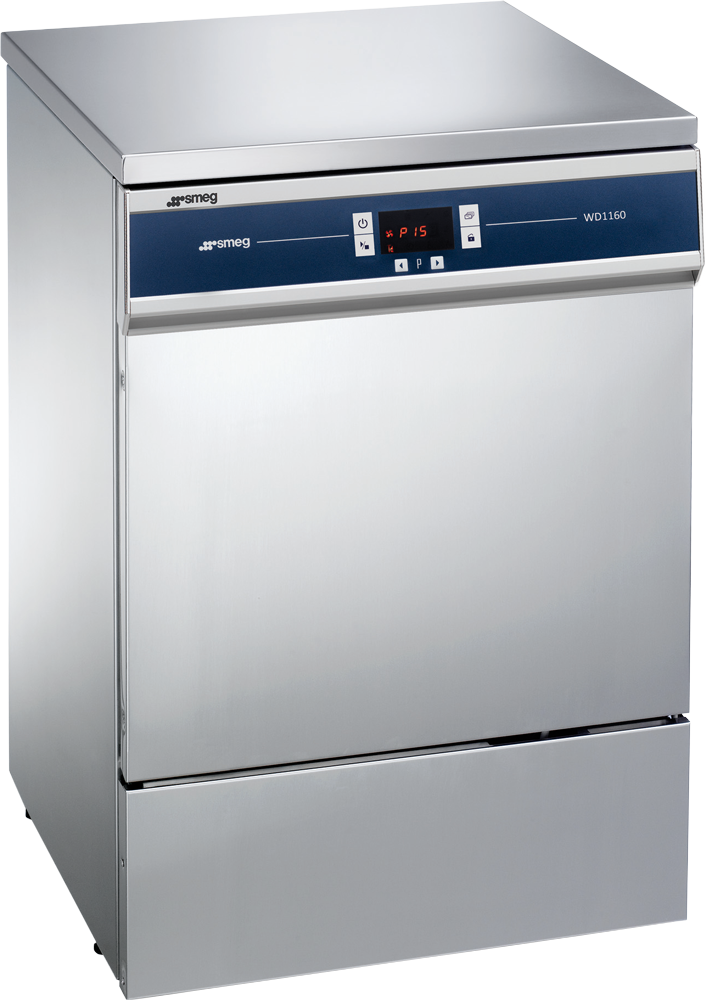

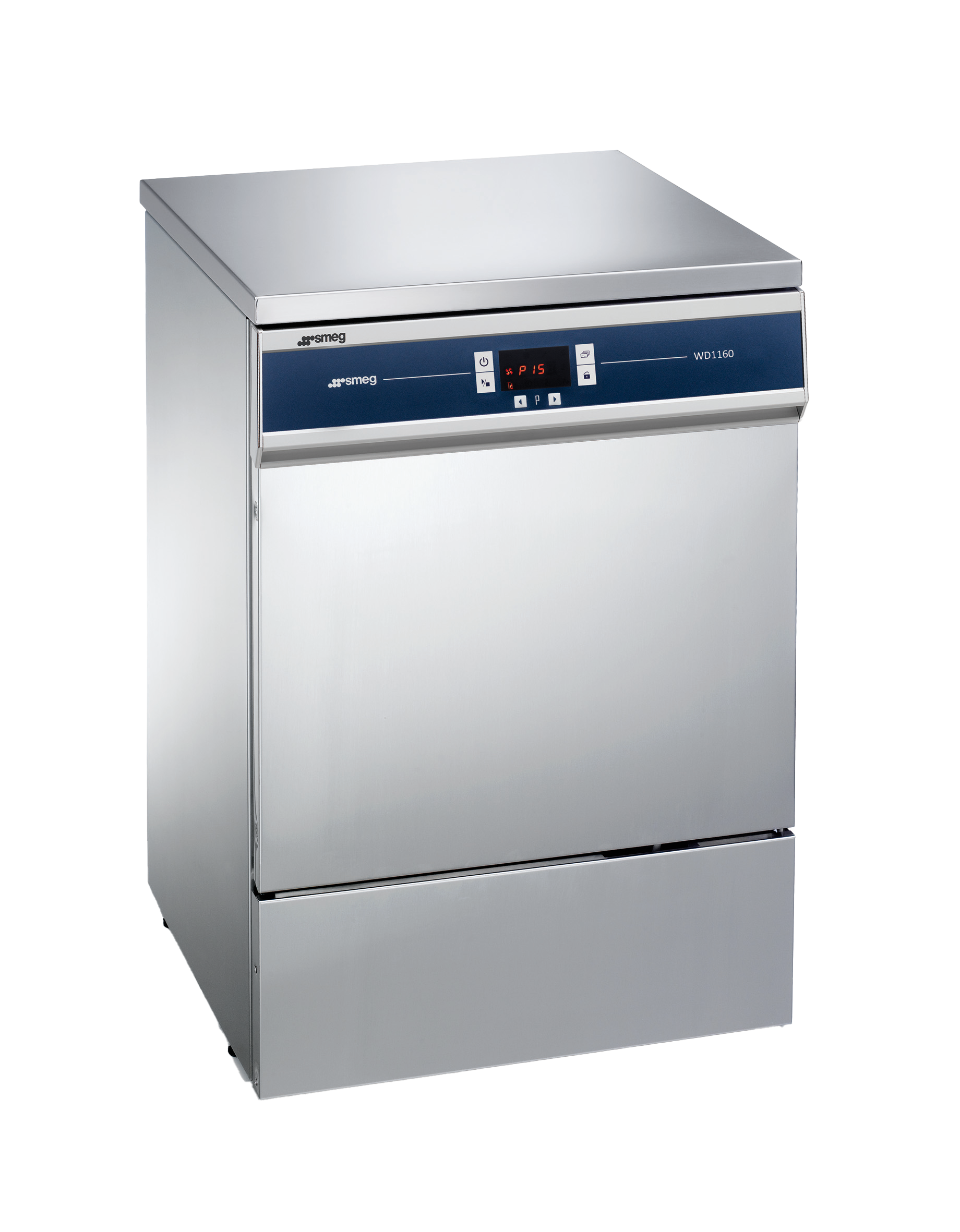

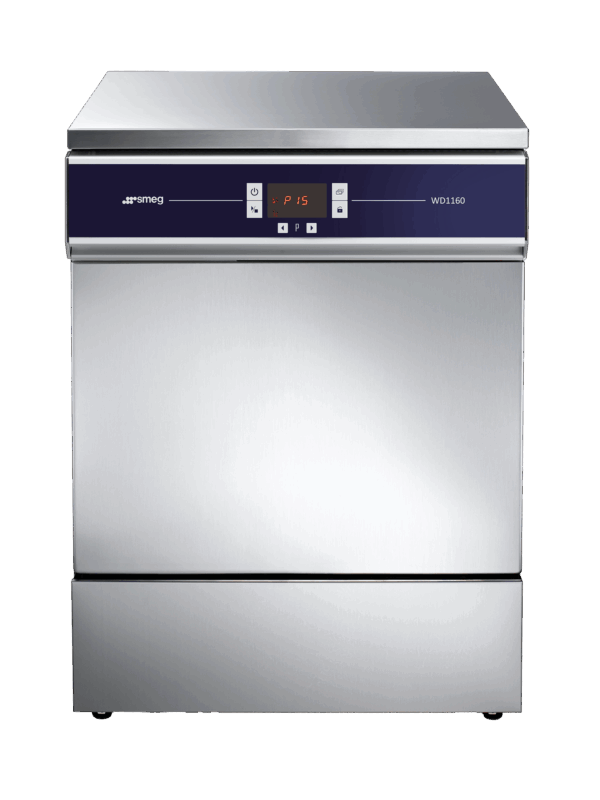

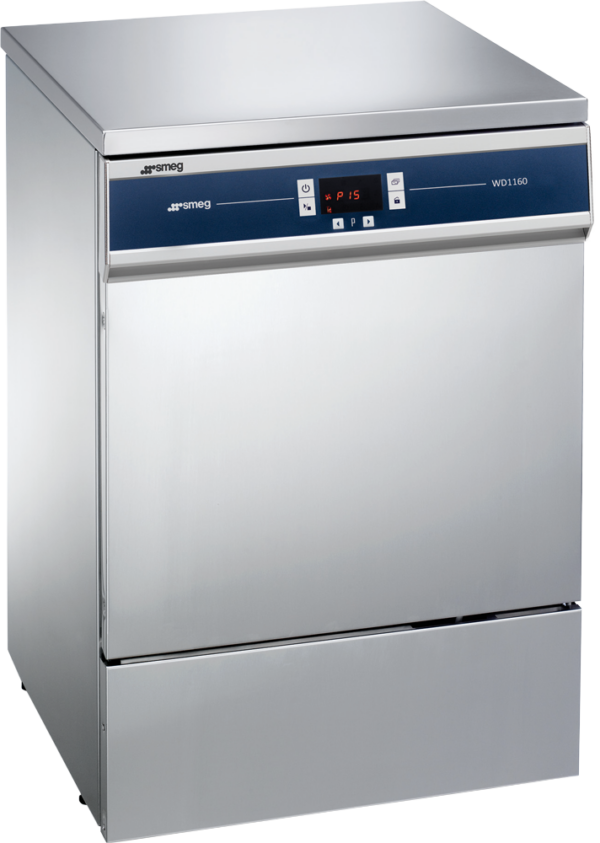

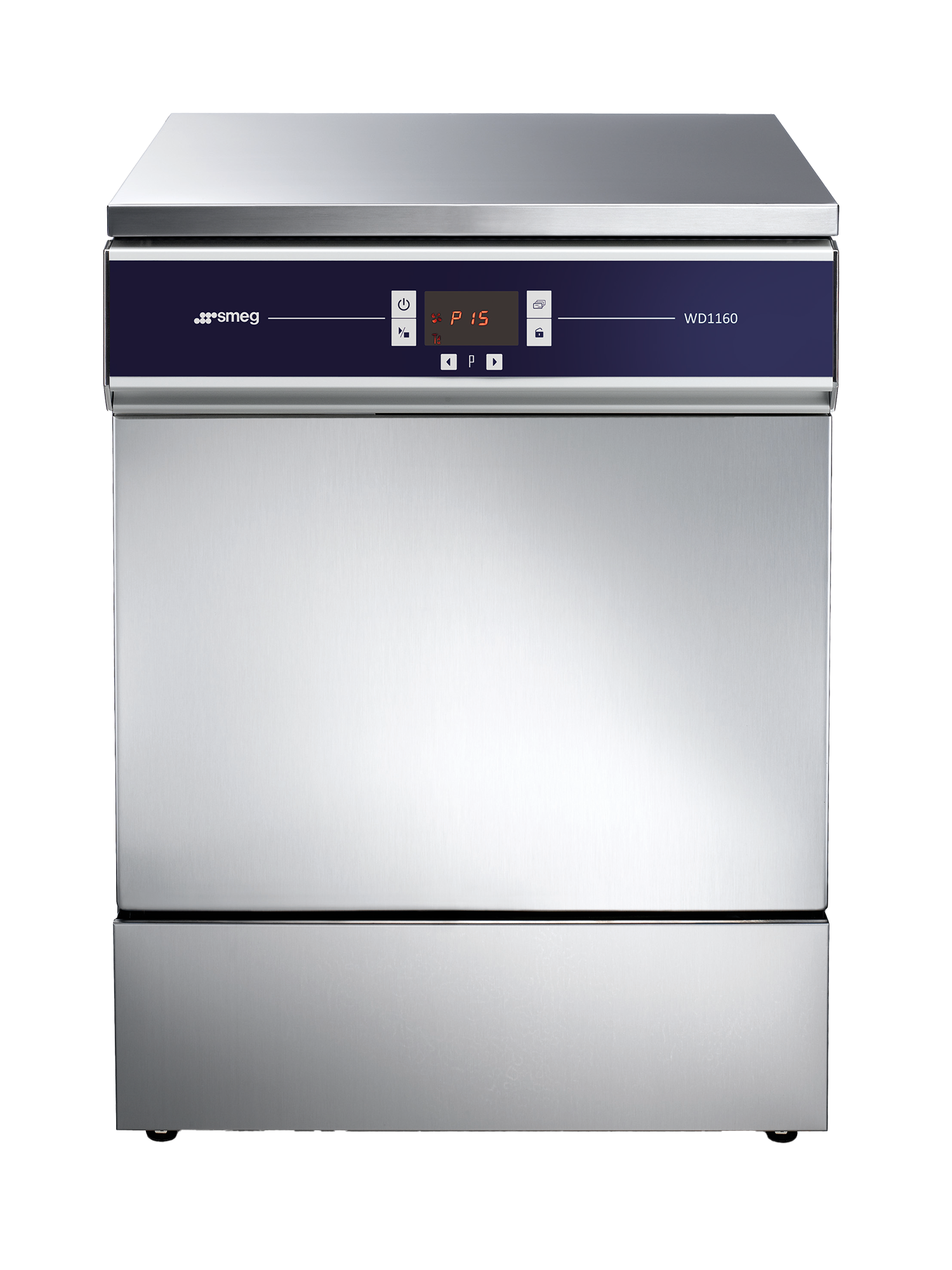

Smeg Medical Instrument and Clogwasher WD1160

The Smeg Medical Instrument and Clogwasher WD1160 is a versatile, high-performance washer-disinfector designed for medical and dental environments. This 60cm underbench unit, engineered with Italian precision, features antibacterial thermal disinfection up to 95°C, an efficient steam condenser, and a robust stainless steel construction. With customizable washing programs, a serial port for data connectivity, and specialized inserts for instruments and clogs, the WD1160 ensures reliable and certifiable cleaning results, making it ideal for sterilization units in hospitals, dental practices, and clinics.

Key Features

• Antibacterial Thermal Disinfection: Capable of washing and disinfecting up to 95°C, ensuring thorough hygiene for medical instruments and clogs in compliance with EN 15883 standards.

• High-Efficiency Steam Condenser: Features an Ecoslim steam condenser with cold water injection to reduce moisture release and enhance drying performance.

• Programmable Electronic Control: Offers 9 default and 6 customizable programs via microprocessor control, enabling tailored cleaning cycles for diverse medical needs.

• Serial Port RS232 for Connectivity: Facilitates data recording and connection to external printers or PCs for diagnostics and cycle tracking, ensuring traceability.

• Specialized Inserts for Versatility: Supports dedicated inserts (e.g., CSK8B) for cleaning surgical instruments, clogs, and micro-instruments, ensuring thorough internal and external cleaning.

Applications

• Dental Practices: Ideal for disinfecting dental instruments, handpieces, and clogs, ensuring compliance with stringent hygiene standards in dental sterilization units.

• Hospital Wards and Clinics: Perfect for cleaning surgical instruments, anaesthesia sets, and operating theatre clogs, supporting infection control in medical environments.

• Specialized Medical Cleaning: Suitable for processing delicate micro-instruments and containers, meeting the needs of high-precision sterilization processes.

• Dimensions (WxDxH): 600 x 600 x 850 mm, designed for underbench installation in sterilization rooms.

• Internal Working Dimensions (WxDxH): 525 x 490 x 570 mm, with a capacity for up to 8 DIN baskets and 2 independent washing levels.

• Electrical Connection: 3N AC 400V – 50Hz, 7 kW max; single-phase (1N AC 230V – 3.3 kW max) and three-phase without neutral versions available.

• Washer Chamber Material: AISI 316L stainless steel washing chamber and internal door, with AISI 304 stainless steel external panels for durability and hygiene.

We provide comprehensive services for laboratory glass washers, using our own Nationwide, manufacturer trained Engineers. Our Services include installation, routine maintenance and repairs.
